DLS Performance

Overview

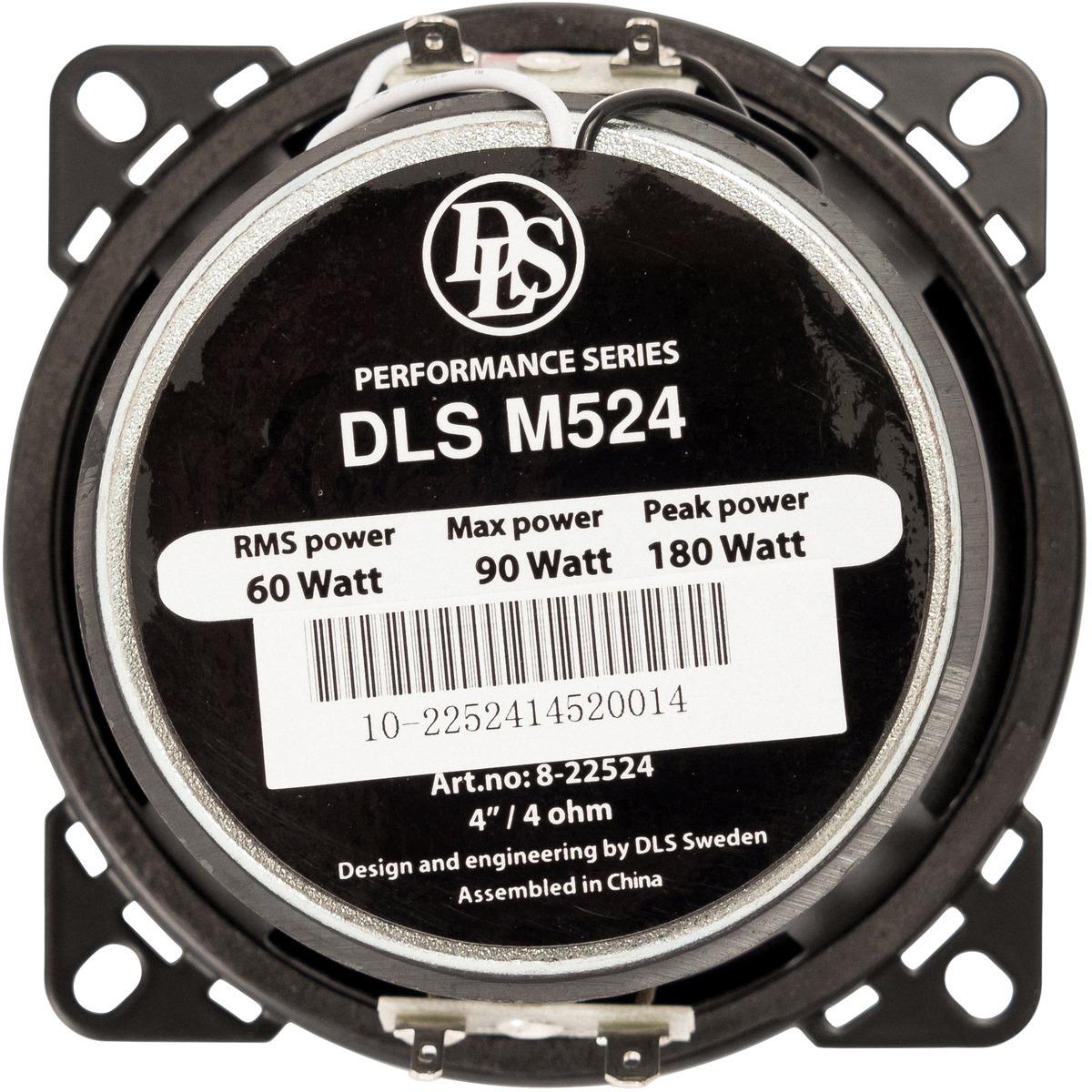

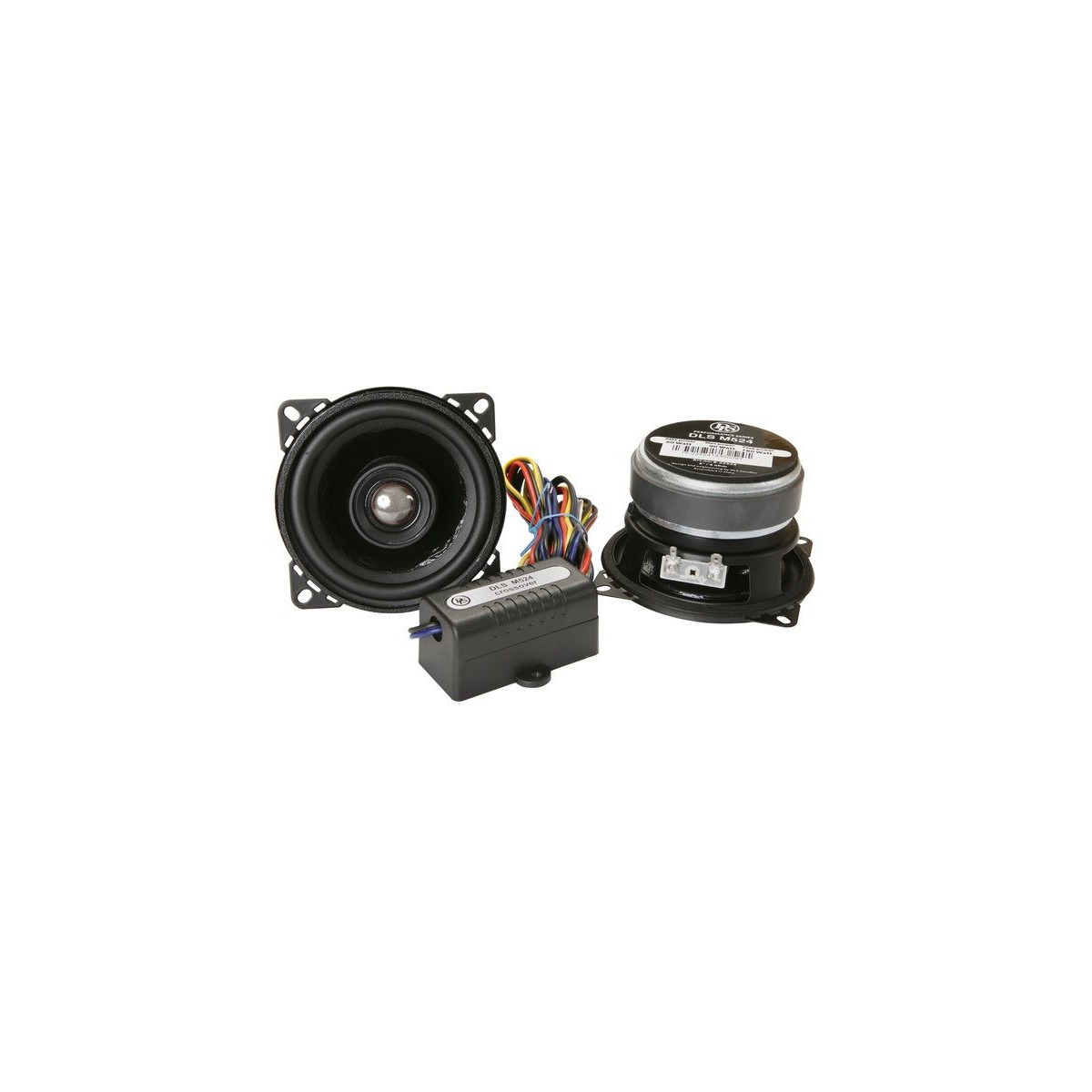

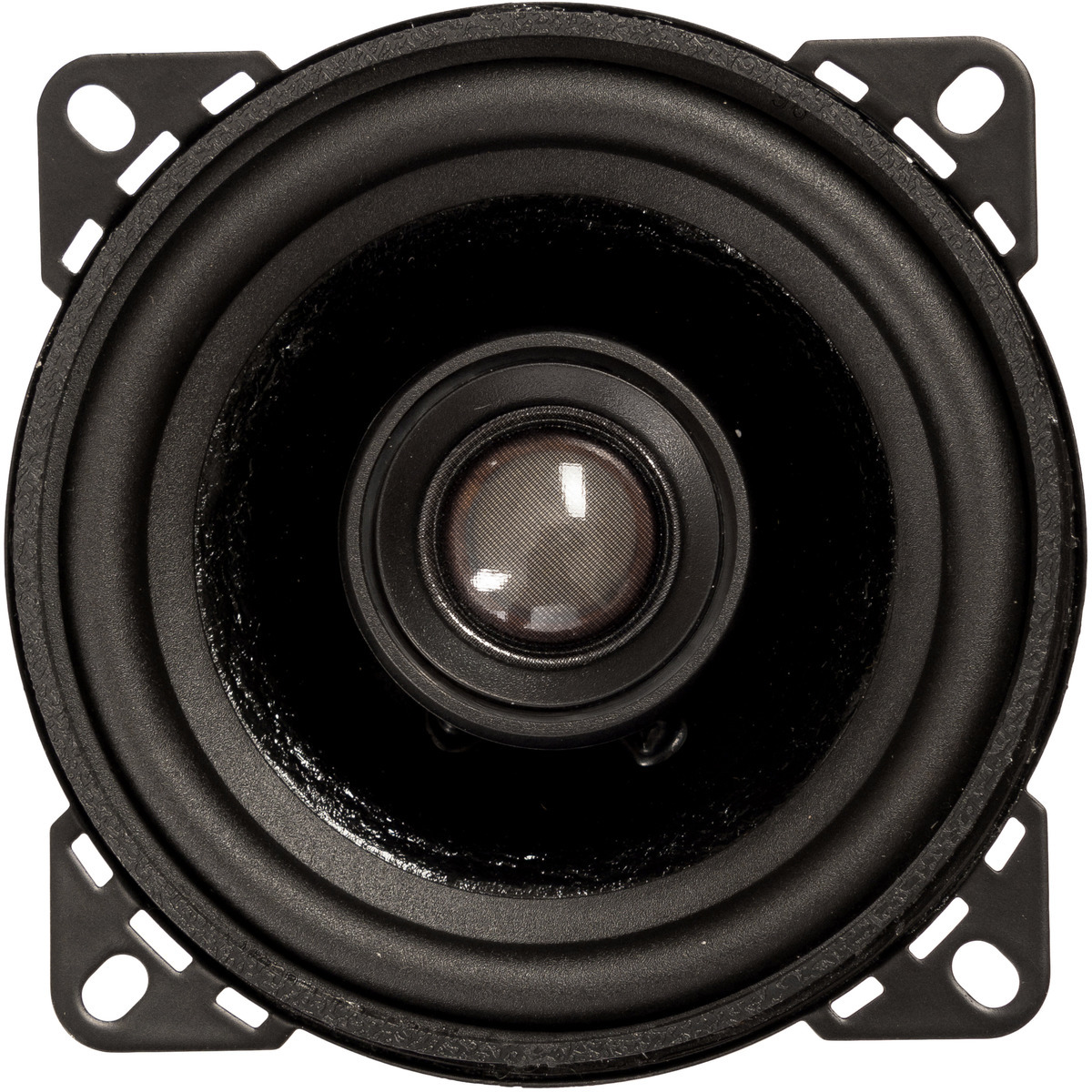

Performance series M524 is a 10 cm (4") 2-way coaxial speaker with a 20 mm silk dome tweeter that guarantees a fantastic sound quality in any installation.

Specifications

• Woofer size 10 cm (4")
• Tweeter 20 mm (0,8") silk dome
• Power handling capacity 60 W RMS / 90 W max, 180 W peak power
• Impedance 4 ohm
• Frequency range 60 - 20.000 Hz
• Sensitivity 80 dB (1W/1m)
• Crossover Box filter with 6dB slope (HP)
• Outer diameter of woofer 102 mm (4")
• Cone material Coated paper cone
• Magnet size 80 mm (3,15")
• Mounting depth 60 mm ( 2,36")
• Mounting hole 97 mm (3,81")
• Size of filter box 73 x 36 x 35 mm
