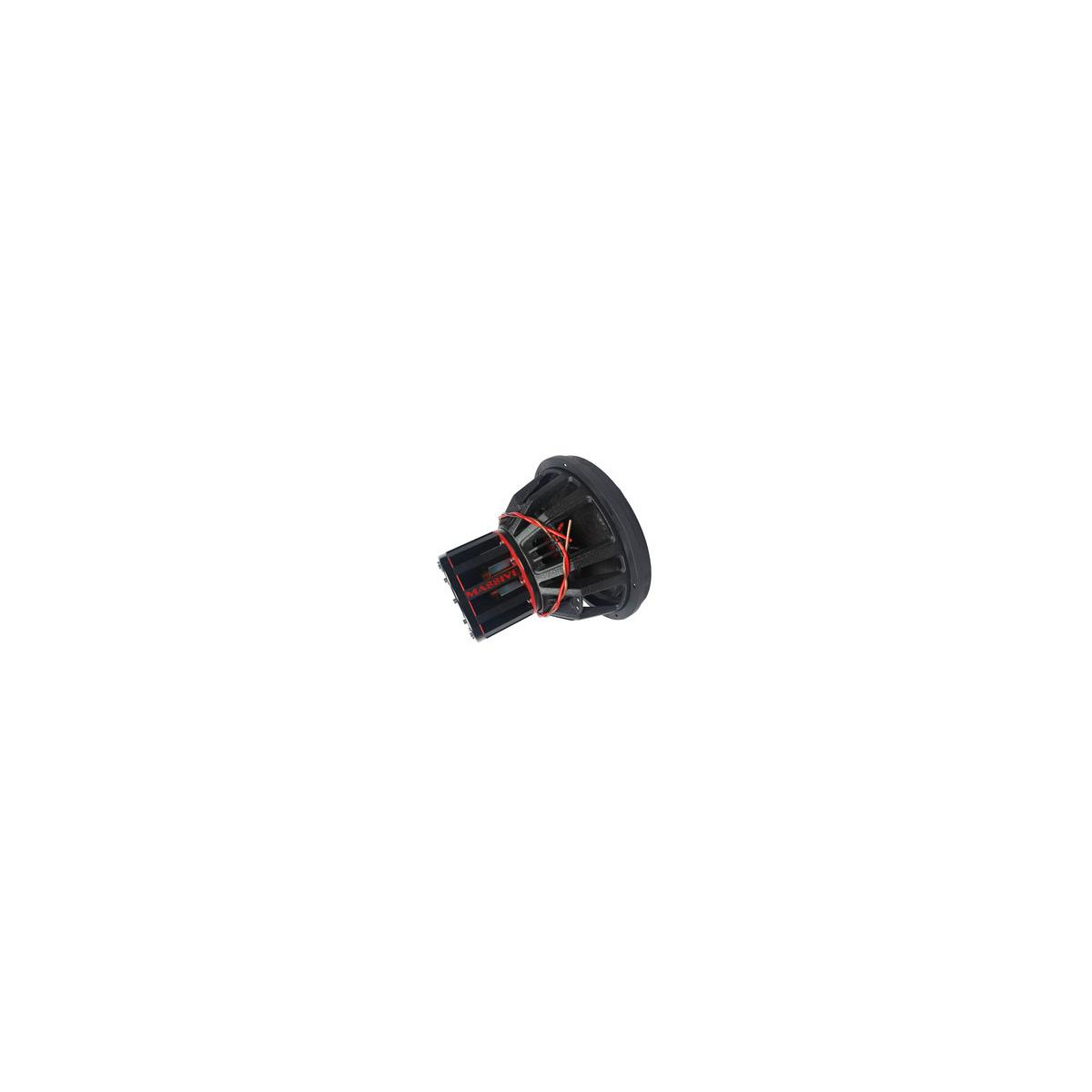

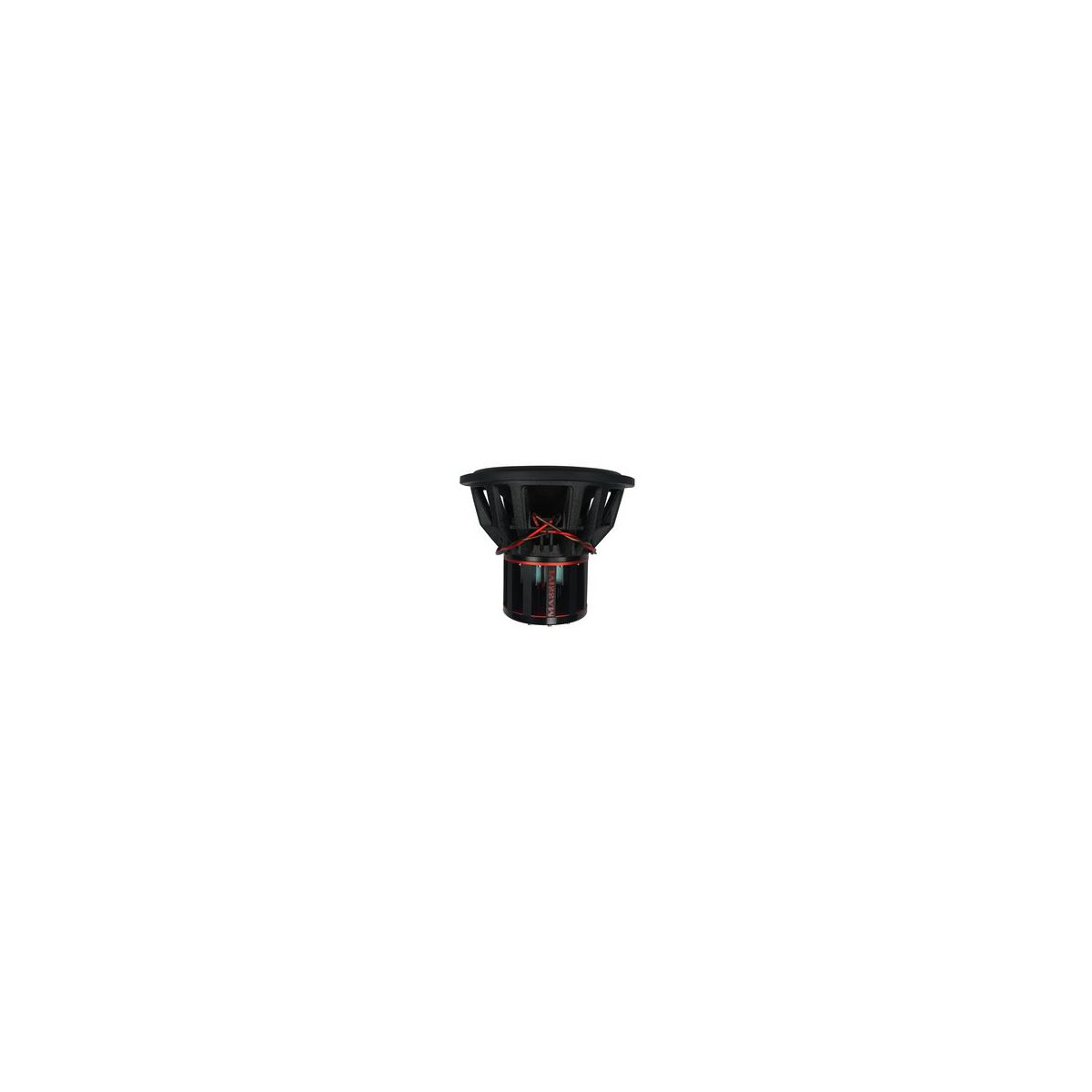

BOA121-N - 12" 6,000 WATTS RMS DUAL 1 OHM MEGA NEODYMIUM SUBWOOFER

Overview

Built for High Performance SPL the BOA-N Series Ultra Efficient 12” BOA-N Series Neodymium Subwoofers are dual 1 Ohm at 6,000 Watts RMS / 12,000 Watts MAX. The “BOA121-N” uses 3” Dual Impedance Black Anodized Voice Coil formers with flat wound windings and have 100% pure copper wires connected directly to the voice coils. Both 12" and 15" BOA-N Series subwoofers use 52 A 12 Lens Grade Stacked Neodymium magnets in an open motor design. Both models are bolted into heavy duty rugged industrial textured cast aluminum baskets that help achieve 89.8 dB efficiency (BOA121-N) with SPL@2.83v/m.

Features

• A 12 Lens Grade 52 Neodymium Open Motor Design
• Heavy Duty Rugged Industrial Textured Cast Aluminum Basket
• Kevlar Fiber Reinforced Non-Pressed Paper Cone with Industrial Textured Finish
• EROM Foam Surround with Red Stitching
• 3” Dual Impedance Black Anodized Voice Coil Former with Flat Winding Wires
• Reinforced Fiberglass Woven Dust Cap
• High Energy Neodymium Magnets
• Over Sized Mirror Image 6 Layers Poly/Nomex Spiders
• Black Anodized One Piece Pole-Plate for added Motor Force
• Triple Black Poly Cotton Spiders with Mirror Image Layout
• Heavy Duty Pure Copper Direct Input Wires Connected to each Voice Coil
• Dual 1 Ohm Impedance

Specifications

• Size 12"
• Peak Power 12,000 watts
• RMS Power 6,000 watts
• Cone Non-Pressed Paper
• Voice Coil 3" Dual 1 Ohm Flat Wound
• Surround EROM Foam with Red Stitching
• Magnet 108oz Triple Stacked Neodymium
• Terminals Heavy Duty Copper Direct Input Wires Connection
• Basket Die Cast
• Tinsel Leads Heavy Duty Triple
• X-Max (2-Way) 13 mm
• SPL 89.8 dB
• Ported Box 17.4" H x 19.5" D x 18.9" W  (17.52 sq.in Port)
