3-WAY SPEAKER WITH PASSIVE RADIATORS

Overview

The flagship of the Heco product range combines the full experience and expertise of the brand. Traditional materials that represent state-of-the-art technology through consistent development, together with components perfected with the latest technology to guarantee maximum sound quality. All of this combined with perfect craftsmanship and packed in a timeless, yet contemporary exterior.

The 30 mm polyfibre compound dome reproduces frequencies well above 50 kHz, while the midrange driver with its strong AlNiCo magnet represents a reference standard in terms of dynamics and resilience. The lower end of the frequency scale is defined not only by 2 x 200 mm woofers, but also four passive radiators in the same format - down into the subsonic range.

All of this is packaged in a solid enclosure with an acoustically perfect cross-section and workmanship that is second to none. Cool black, in exquisite piano lacquer of course, contrasts with solid aluminum elements, which set standards not only visually, but also in terms of construction.

Features

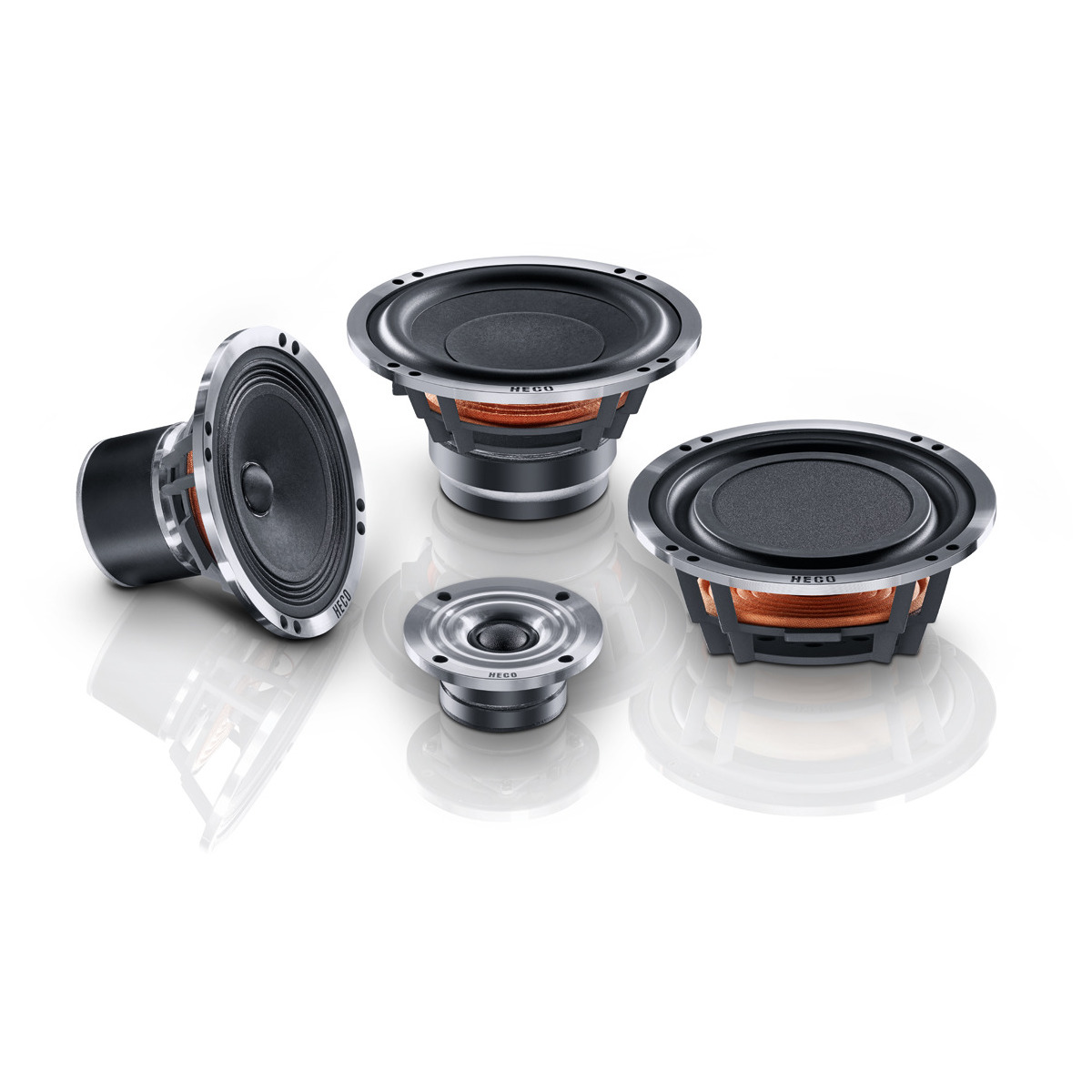

-State-of-the art chassis technology: Fluktus tweeter and kraft-paper diaphragms in the mid and low-range frequencies

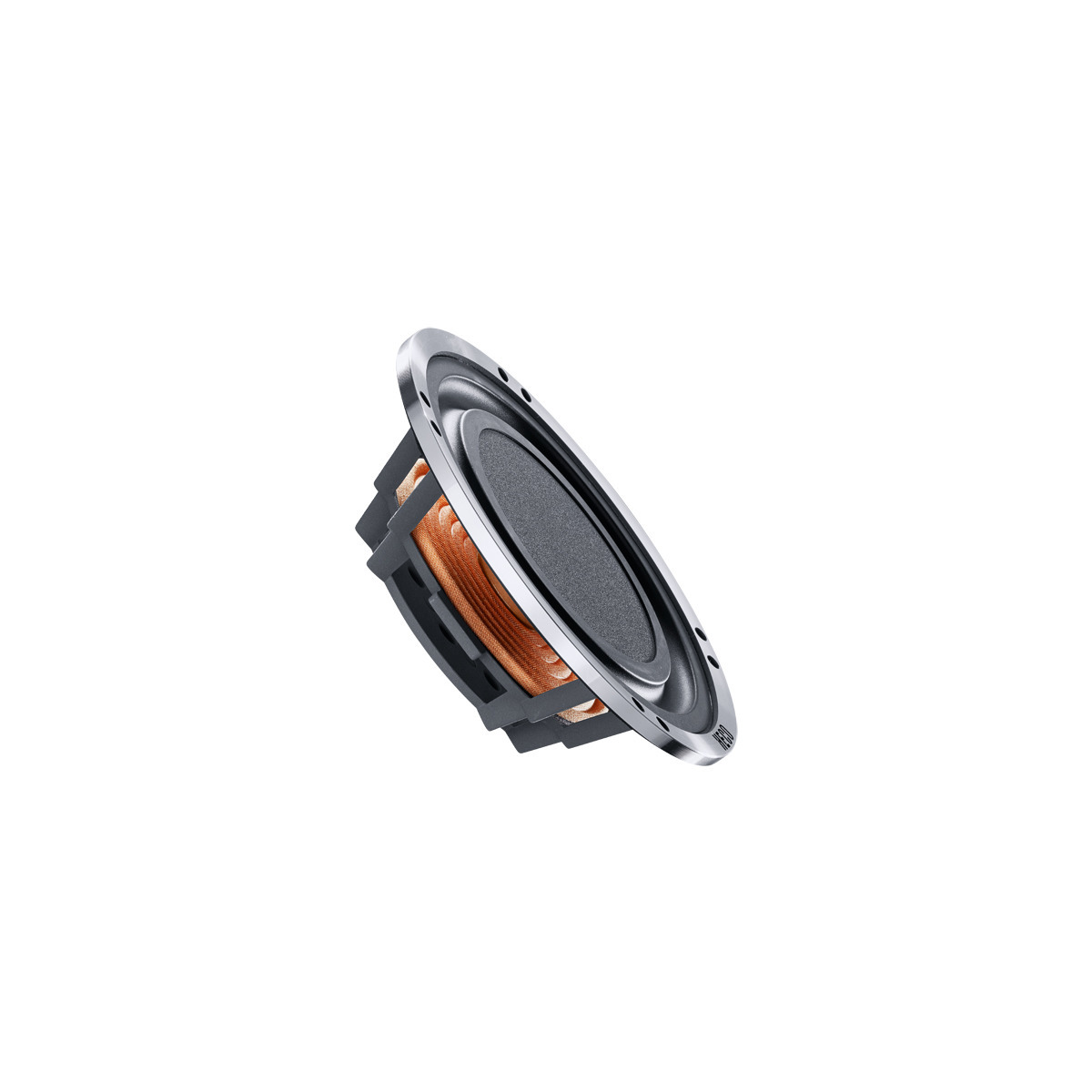

-2 x 200 mm woofers plus 4 x 200 mm bass radiators, midrange driver with Alnico magnet

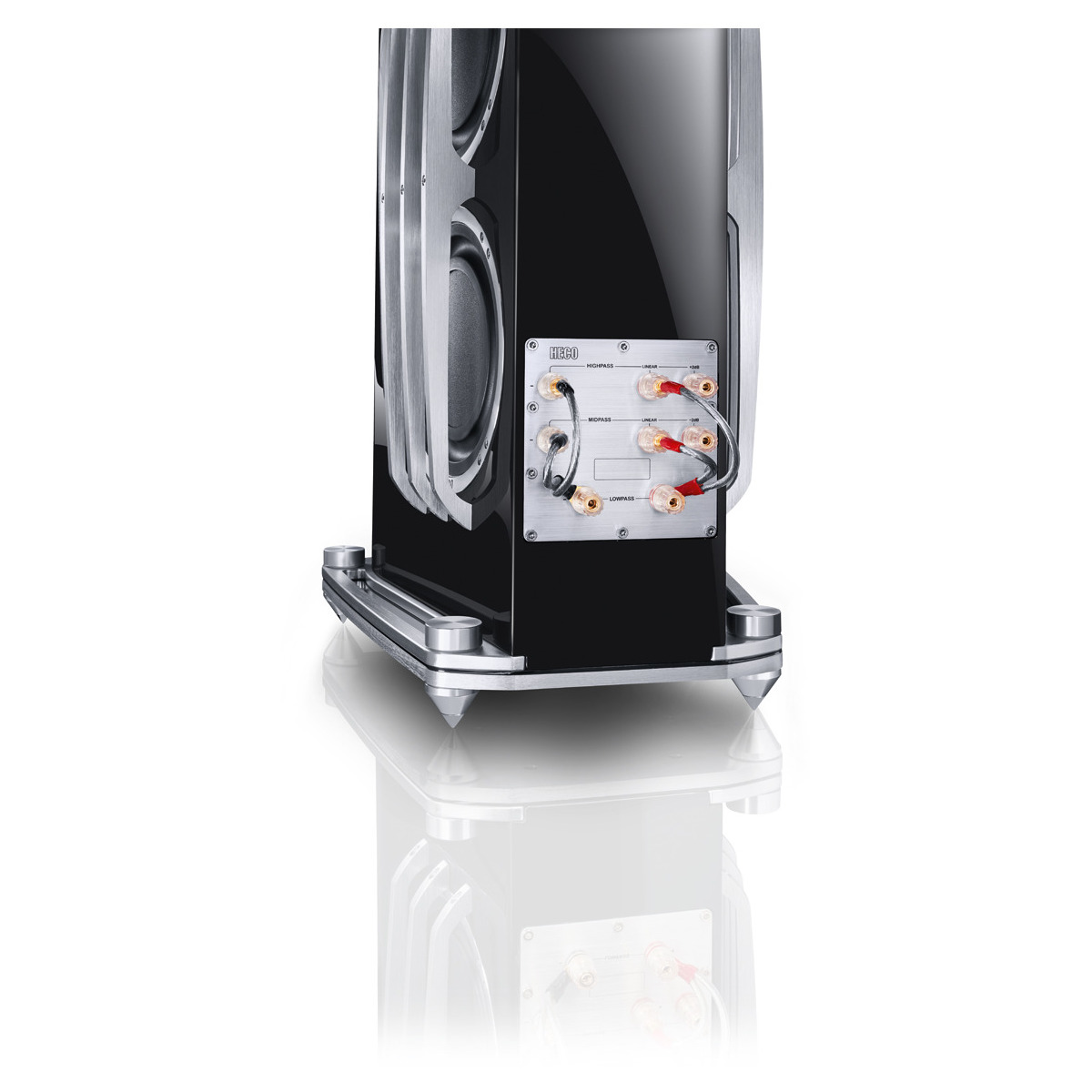

-Connection terminal with bi- and tri-wiring and bi- and tri-amping option

-Enclosure with a genuine piano lacquer finish

-Solid enclosure with streamlined cross-section prevents resonances

-Base plate with protective side elements made of solid aluminium

-Open, compression free midrange chamber with complex, aperiodic damping

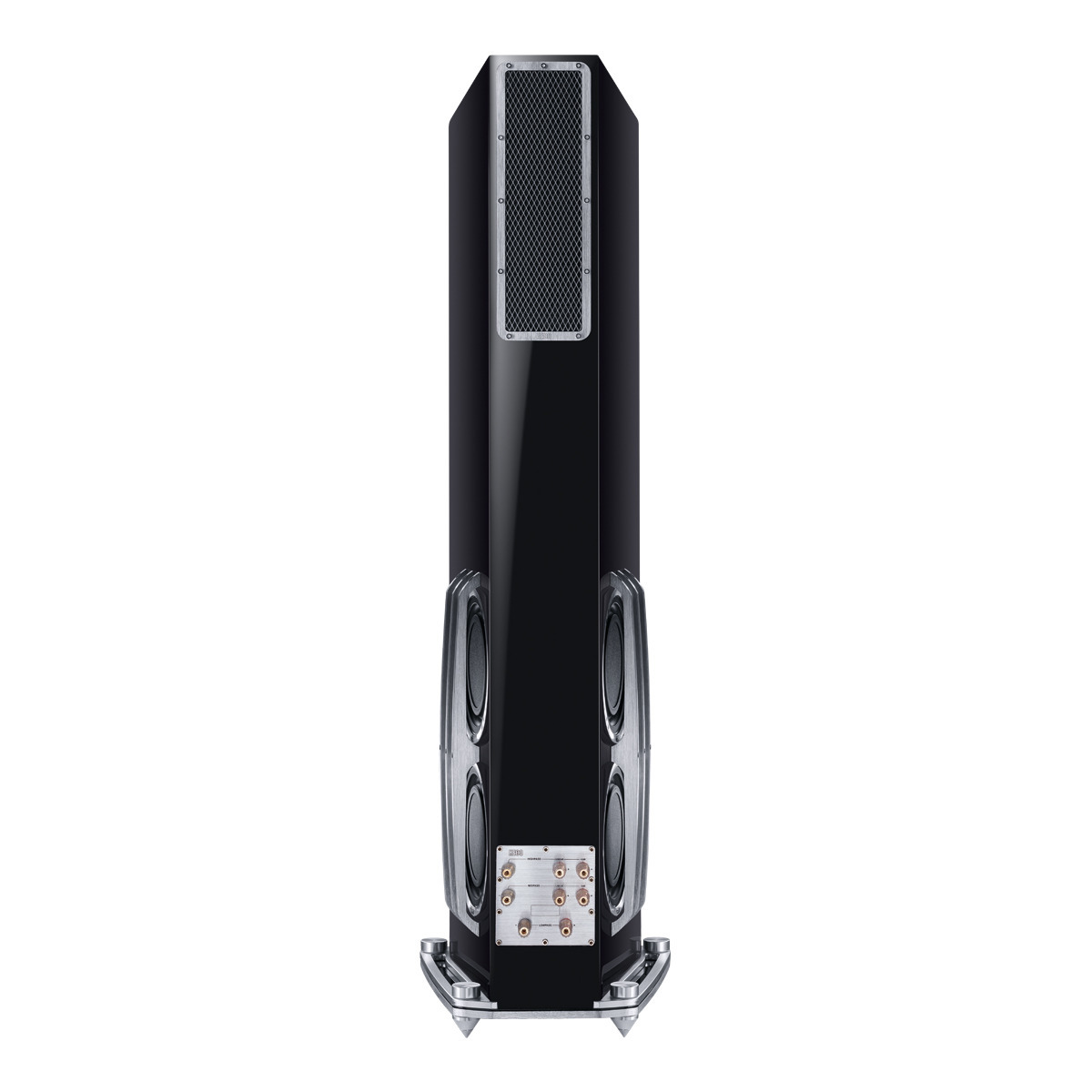

-High-end sidefire bass radiator construction for an extended bass range totally free of disruptive flow noise

-Removable cloth protection cover with hidden magnetic

-High-end sidefire bass radiator construction for an extended

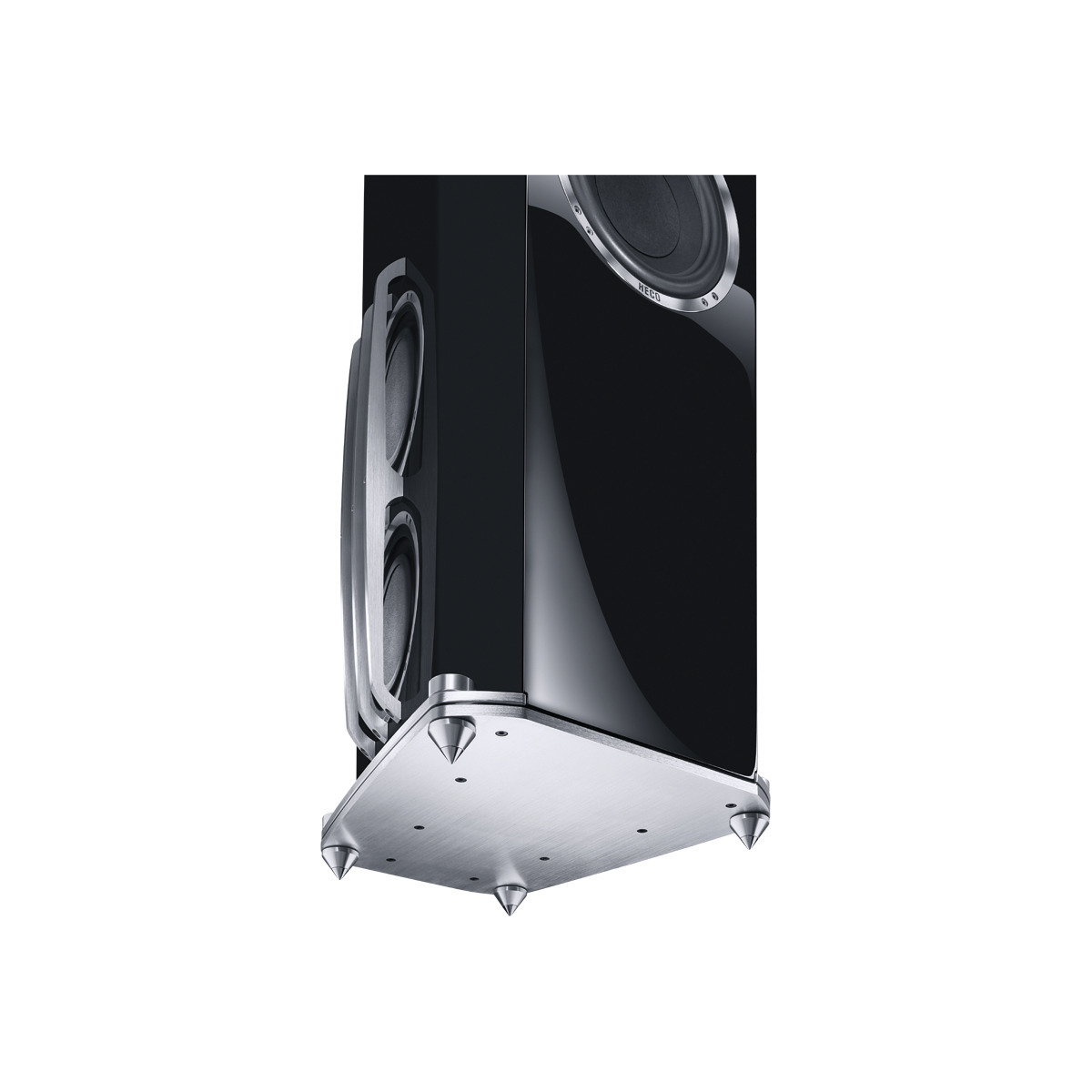

-Solid aluminium base plate with height-adjustable metal cone spikes

-Exchangeable metal/rubber spike tips for an optimum adaptation to the floor type

-Solid construction using MDF panels and elaborated struttings, rounded side panels and elegantly angled top side

-Noble high-gloss lacquering

Specifications

-PRINCIPLE 3 way, quad bass radiator

-SENSITIVITY (2.8V/1M) 93 dB

-EQUIPMENT 170 mm midrange 2 x 8” woofer 1” dome-tweeter 4x 8” bass radiators (sidefire)

-IMPEDANCE 4 – 8 Ohms

-CROSSOVER FREQUENCIES 290 Hz, 2.750 Hz

-POWER HANDLING (RMS/MAX) 300 / 550 Watts

-FREQUENCY RESPONSE 17 - 52.500 Hz

-RECOMMENDED AMPLIFIER OUTPUT 30 - 550 Watts

-DIMENSIONS (WXHXD) 295 x 1310 x 435 mm

-WEIGHT 49,8 kg
