ELEGANT FLOOR-STANDING MODEL WITH 3.5-WAY COMPONENTS

Overview

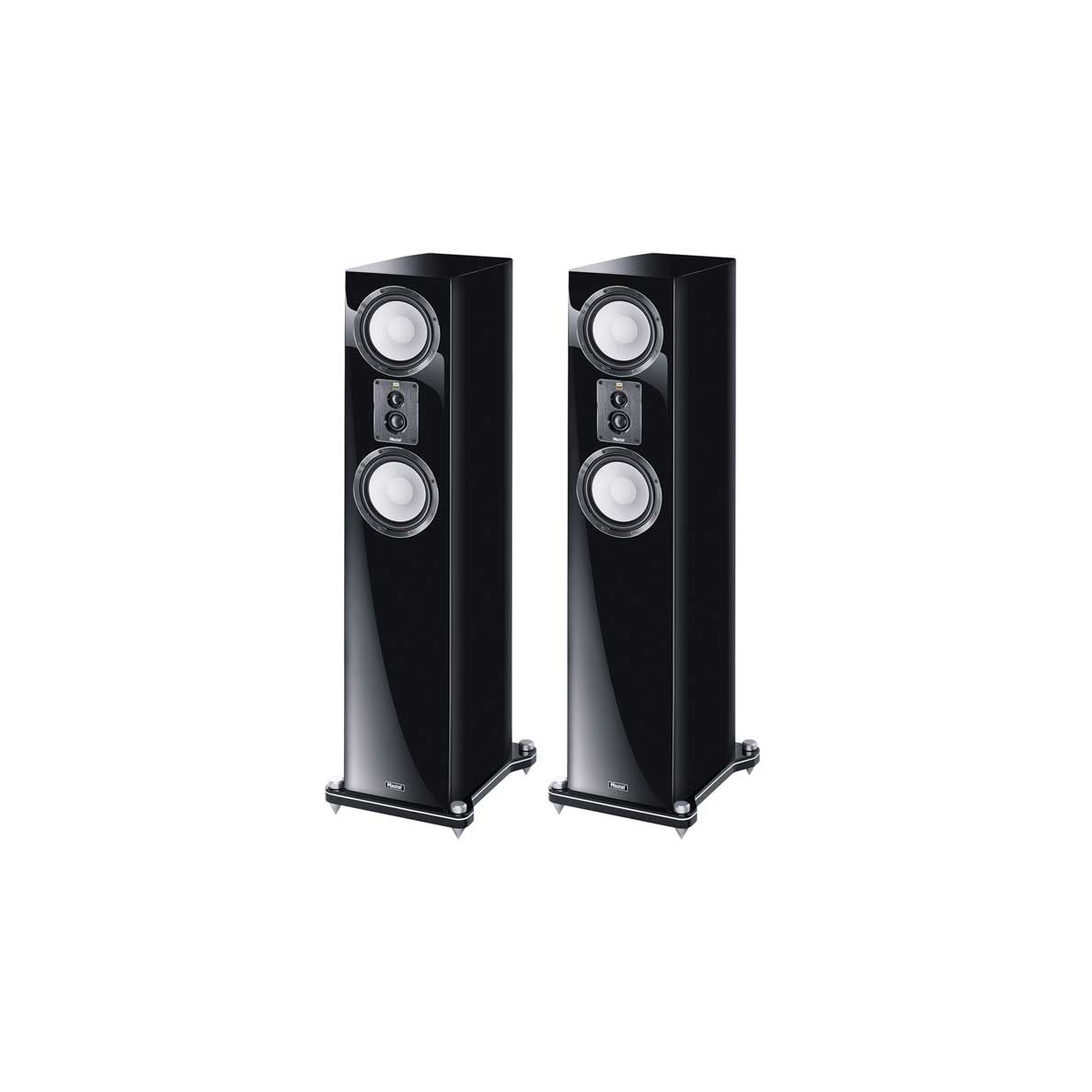

At a height of just over one meter, the Signature 905 can definitely be described as being full-size. And it goes without saying that the slim enclosure also houses the Hi-Res Audio-certified double tweeter module. In addition, there is a 170 mm midrange woofer as well as an equally large, pure woofer, both made from the high-tech material mix of ceramic and aluminum. Apart from being ideal as a comprehensive solution for stereo use, the 905 is also perfectly suitable as a front channel in a home cinema set-up, combined in that case with the Center Signature 93.

Features

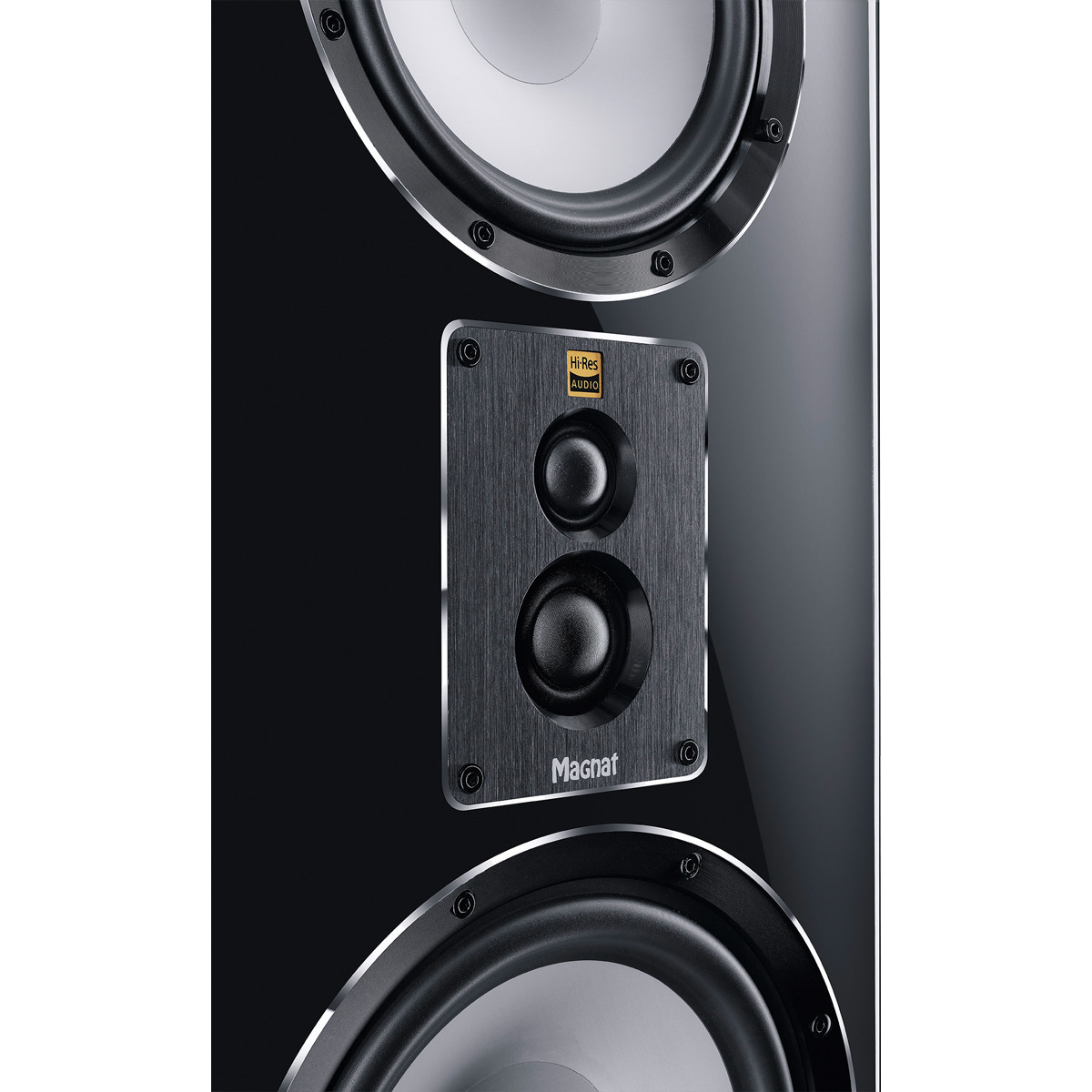

-Hi-Res certified dual tweeter module with two fmax domes
-3.5-way speaker with bass reflex technology
-Woofer and midrange driver with ceramic-aluminium diaphragm + aluminium die-cast baskets
-Spikes for secure positioning and acoustic decoupling
-Finish: Black piano lacquer or Macassar veneer
-Powerful neodymium ring magnet systems for excellent dynamics
-Special sound guides in the solid ABS/aluminium front panel for optimum dispersion characteristics
-Newly developed high-res tweeter module with two fmax Signature dome tweeters
-Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz
-30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
-Klippel® optimised construction
-Sophisticated voice coil ventilation for a particularly high degree of resilience
-Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
-Distortion-optimised magnet systems with double induction rings and stray field optimisation
-Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
-Sophisticated voice-coil ventilation for high efficiency
-Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring
-Elaborate phase and amplitude-optimised APOC crossover
-High-quality interior cabling
-Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables
-Height-adjustable, counter-locked solid metal spikes with replaceable tips for optimum stability on all floors
-Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design
-Decoupling silicone feet and metal spikes included
-Magnat Airflex port with large openings ensure an optimum bass response without ambient noise
-Noble high-gloss lacquered body (black version) or high-gloss lacquered real wood veneer (macassar version)

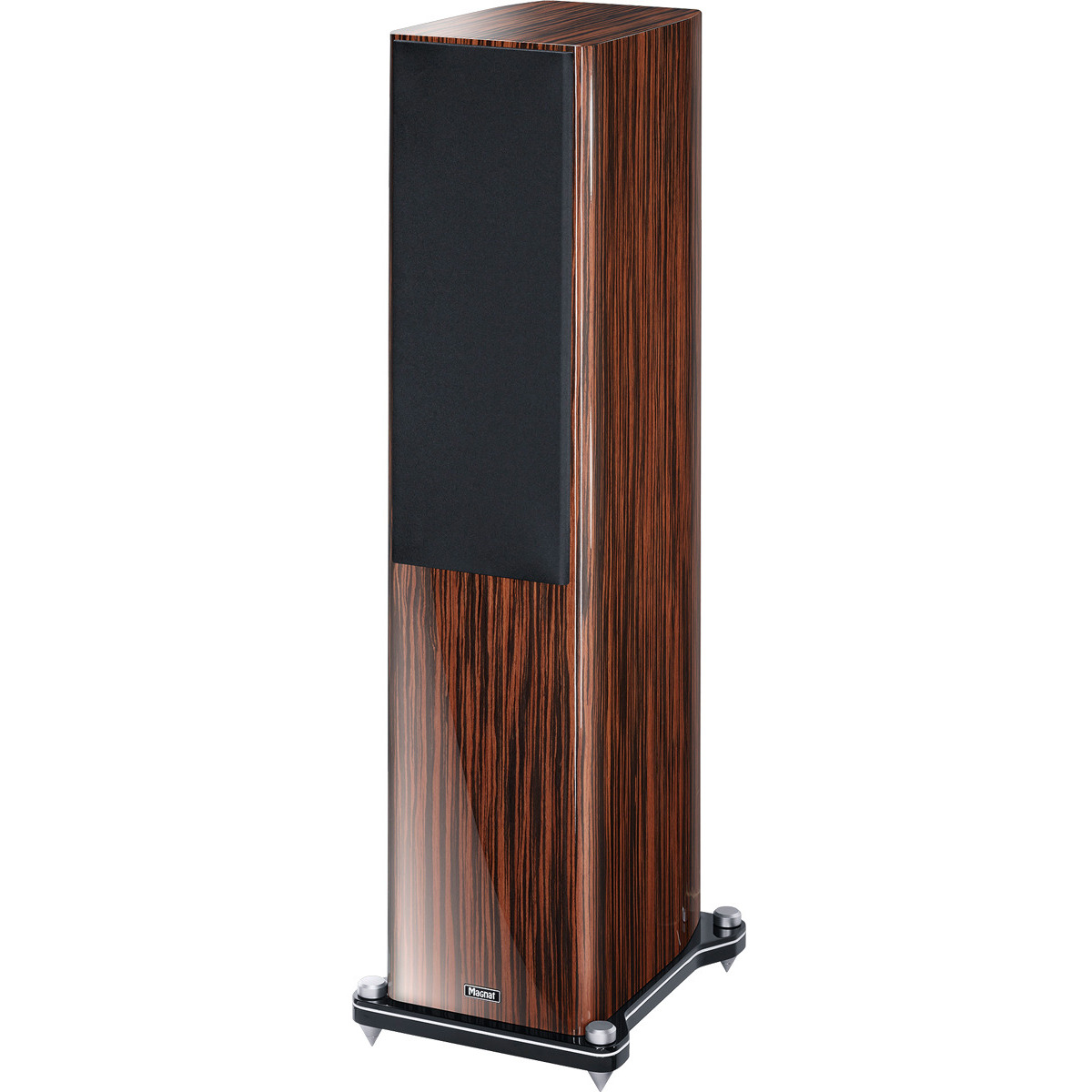

-Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing
-Solid MDF base plate with black high-gloss lacquer

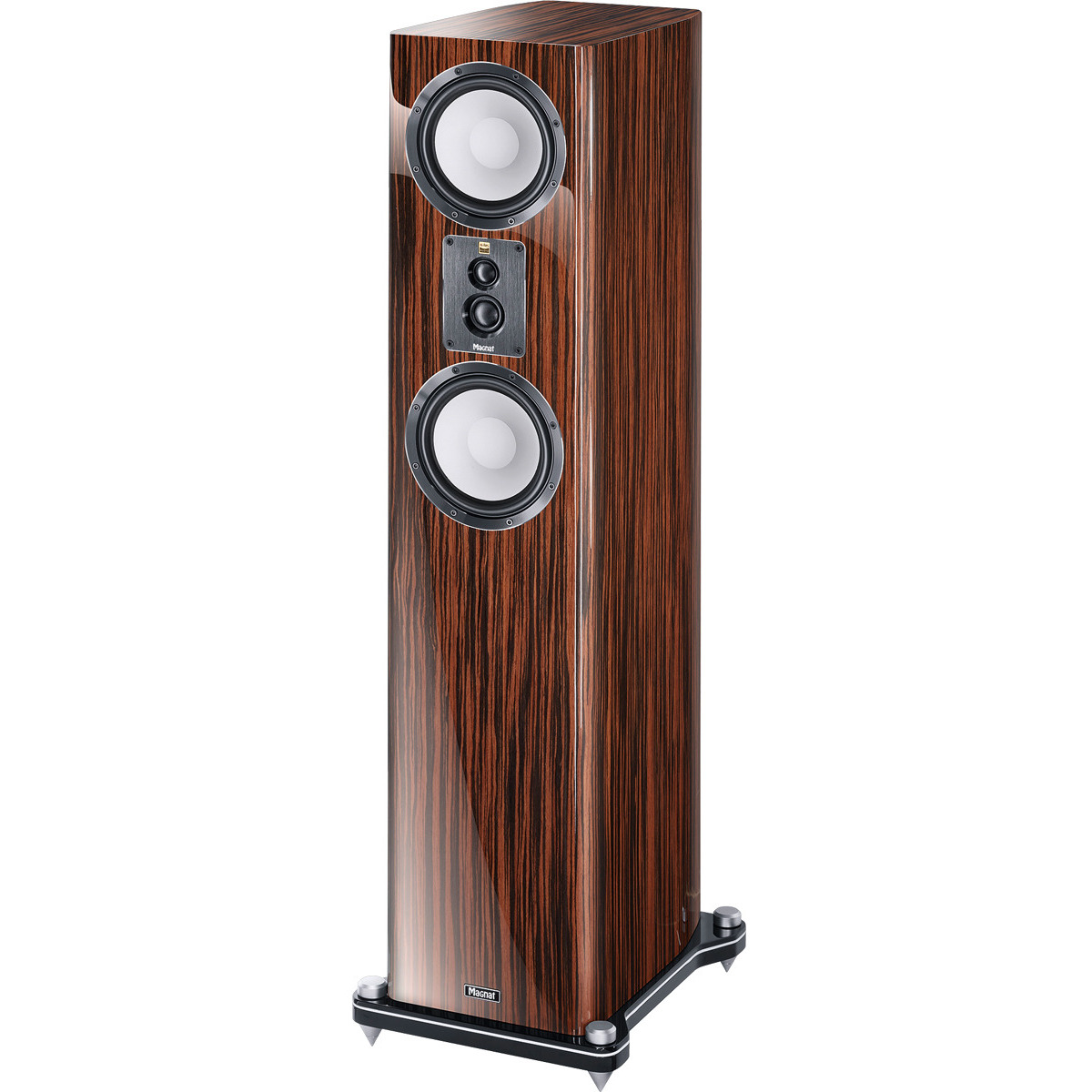

-Piano macassar

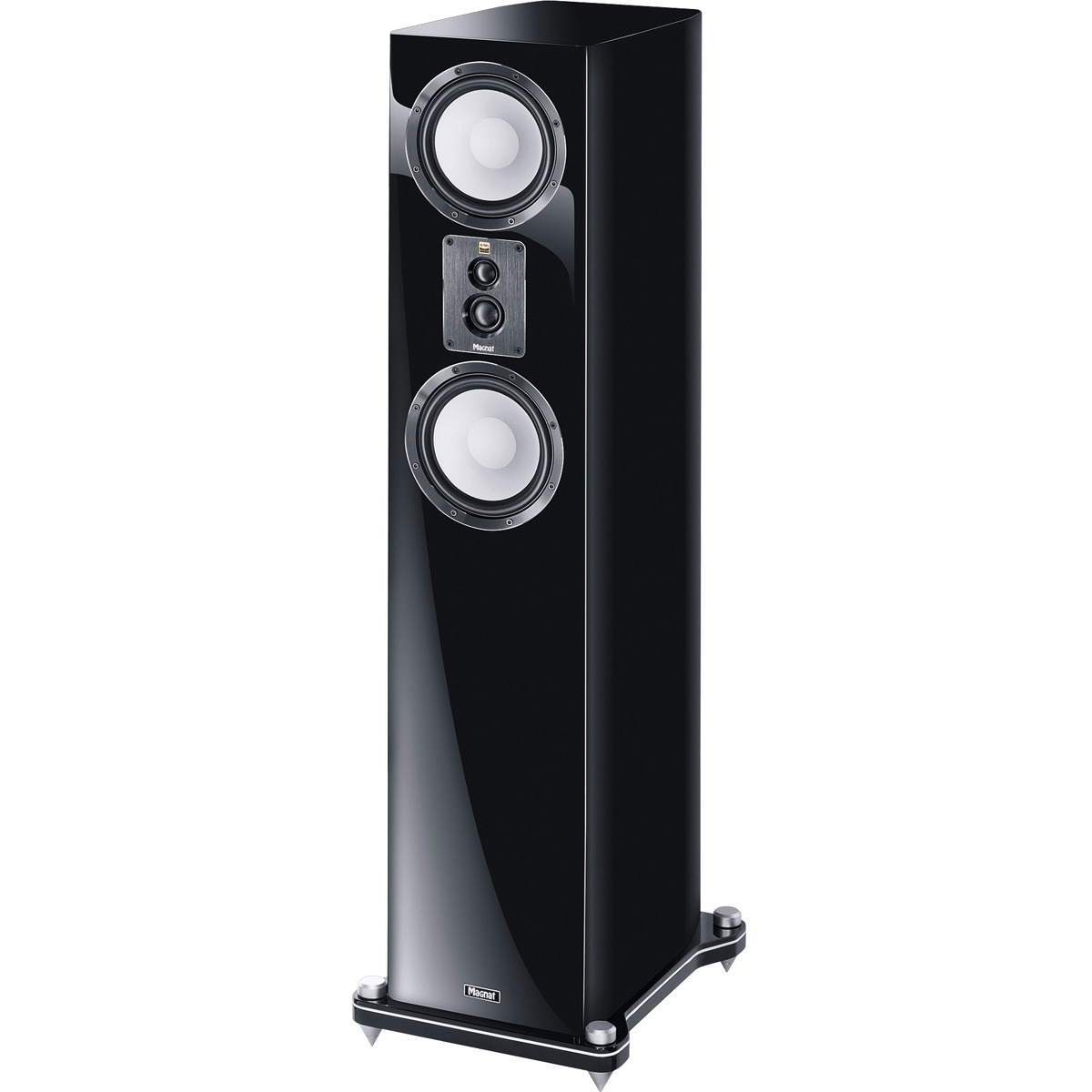

-Piano Black

Specifications
FREQUENCY RESPONSE 23 - 55000 Hz
PRINCIPLE Floorstanding Speaker, 3.5 way, double bass, bass reflex
EQUIPMENT 170 mm woofer-midrange 1 x 170 mm woofer 1.2" dome-tweeter 0.75" super-tweeter
POWER HANDLING (RMS/MAX.) 190 / 340 Watt
IMPEDANCE 4 – 8 Ohms
CROSSOVER FREQUENCIES 320 Hz/2400 Hz/17500 Hz
RECOMMENDED AMPLIFIER OUTPUT 30- 550 Watt
SENSITIVITY (2.8V/1M) 93 dB
DIMENSIONS (WXHXD) Cabinet: 225 x 1010 x 352 mm
