HIGH-END 3-WAY SHELF-TOP SPEAKER - Pair
Overview
The Signature 903 offers all the qualities of the 900 series in a compact format. It is therefore predestined for use in smaller rooms, where there isn’t much space or as a surround-sound add-on for home cinema applications. The Hi-Res Audio-certified tweeter module is used here together with a 170 mm woofer featuring a ceramic-aluminum diaphragm. It shares the exquisite black piano lacquer or Macassar veneer finish with the other models in the range.
Features
-Hi-Res certified dual tweeter module with two fmax domes
-Three-way speaker with bass reflex technology
-Subwoofer with ceramic-aluminium diaphragm + aluminium die-cast baskets

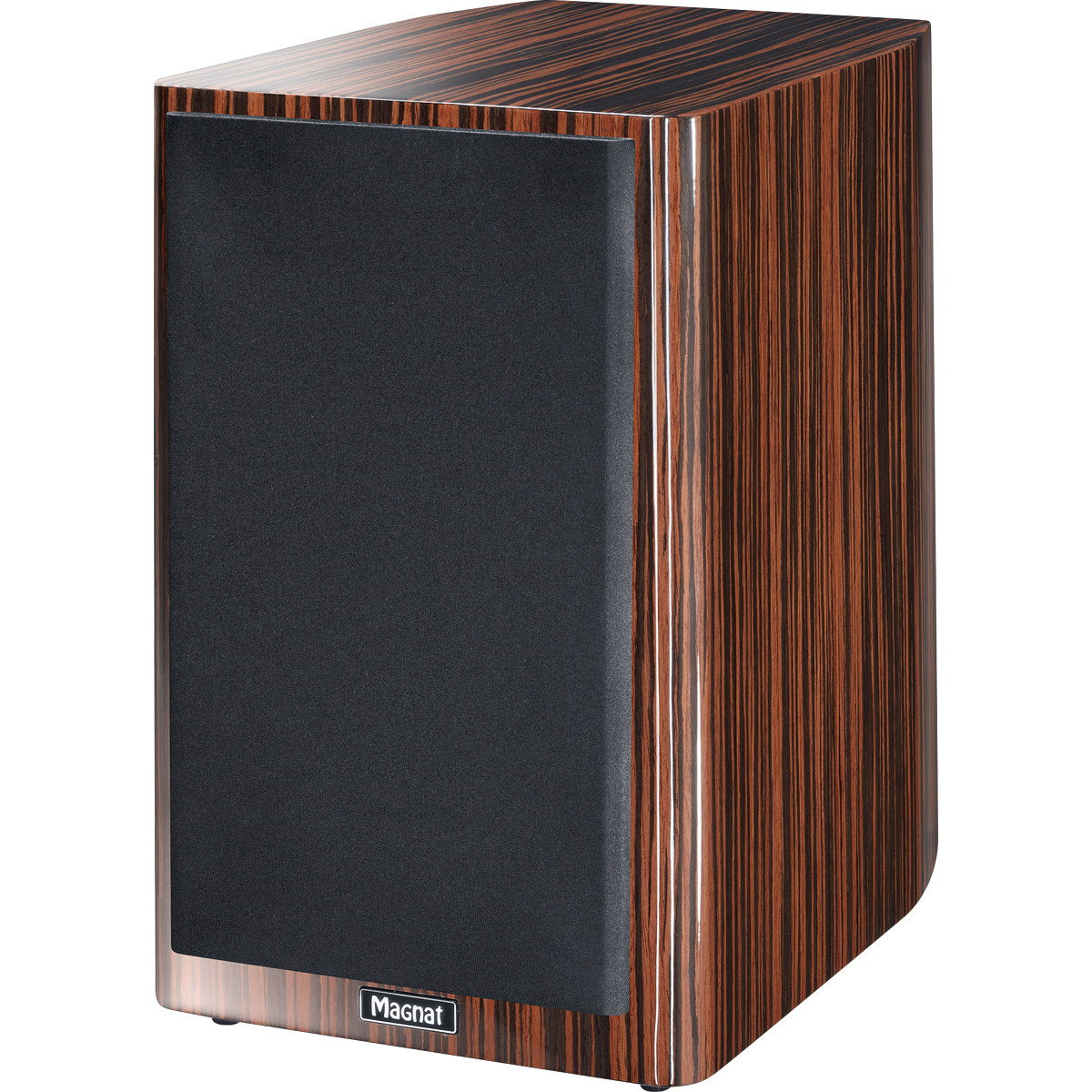

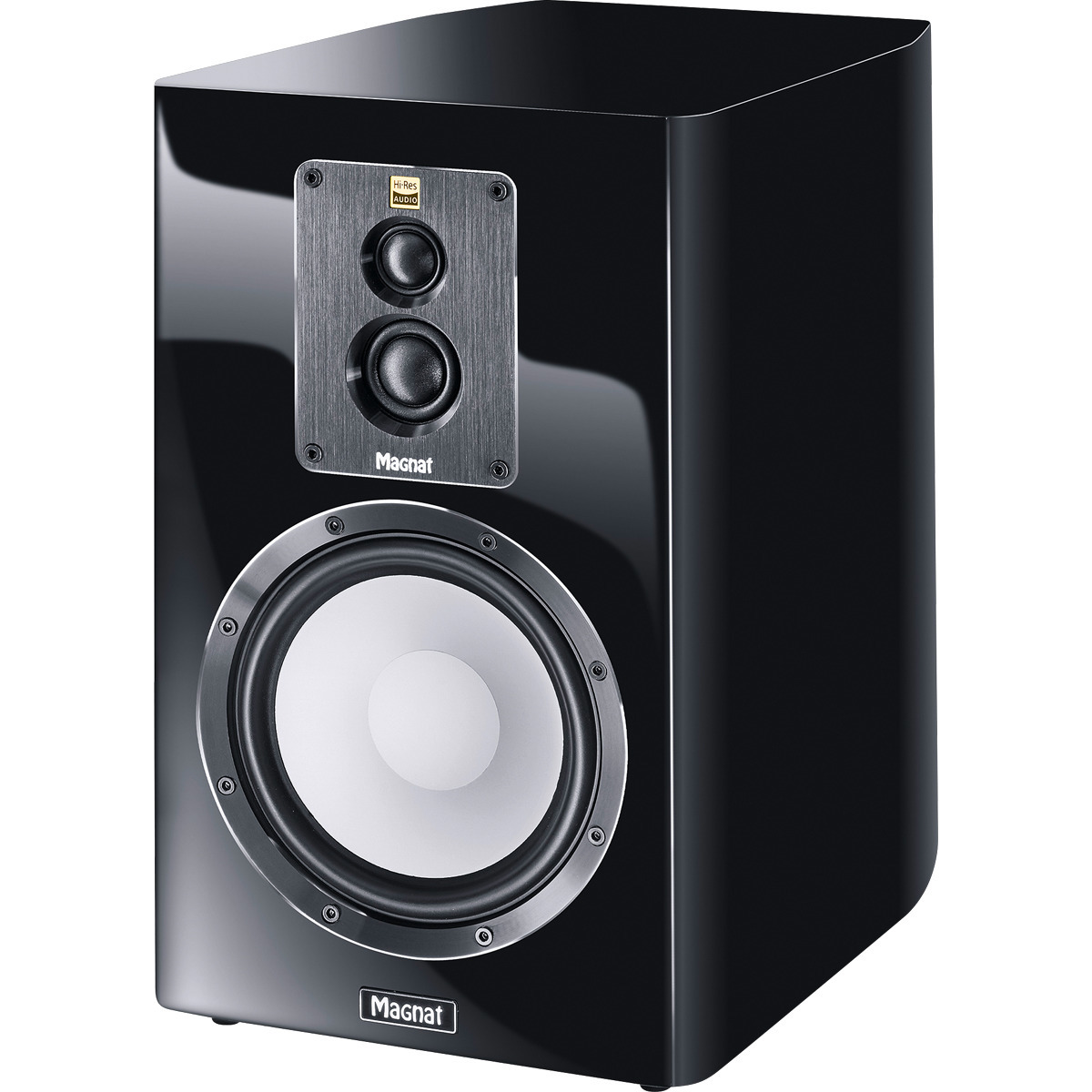

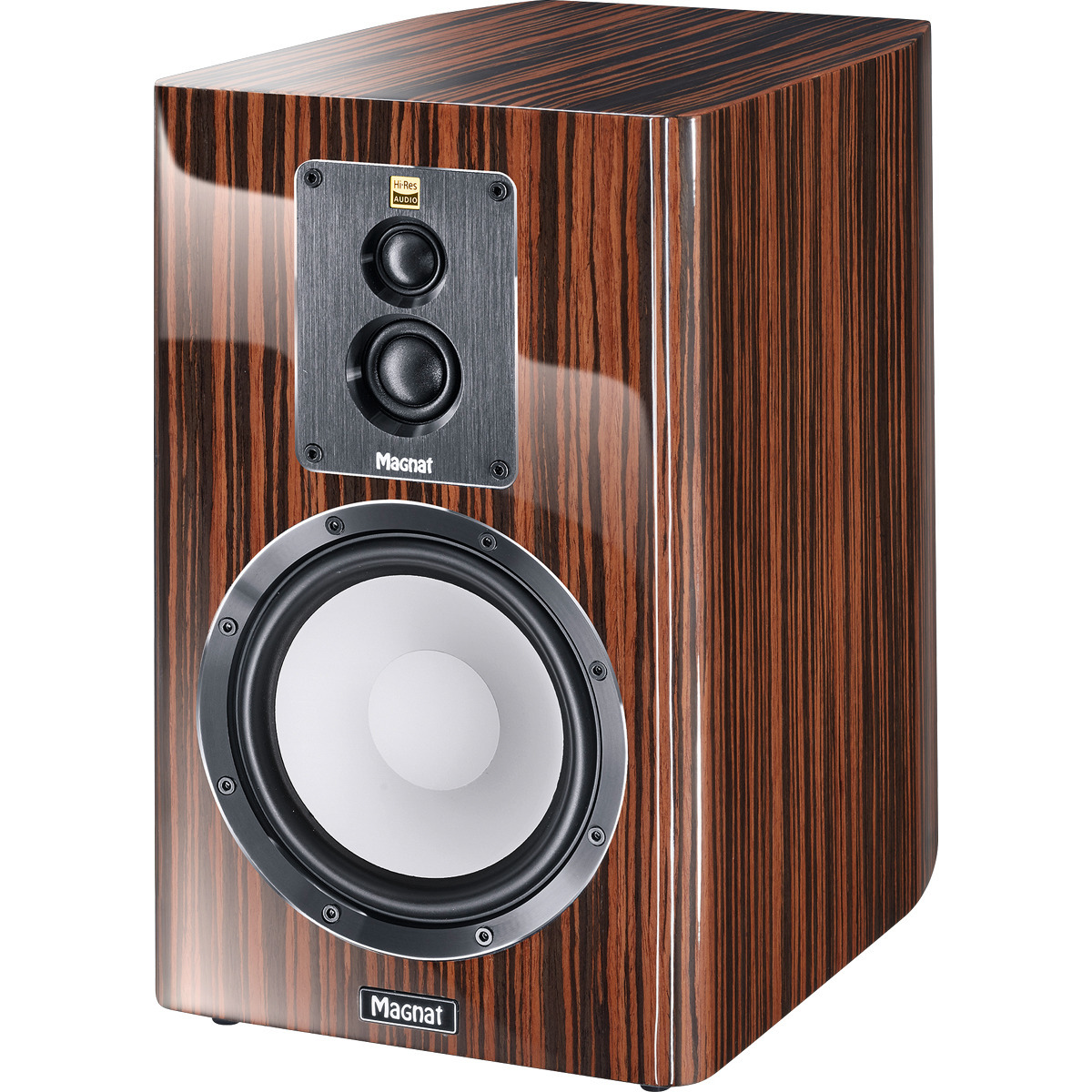

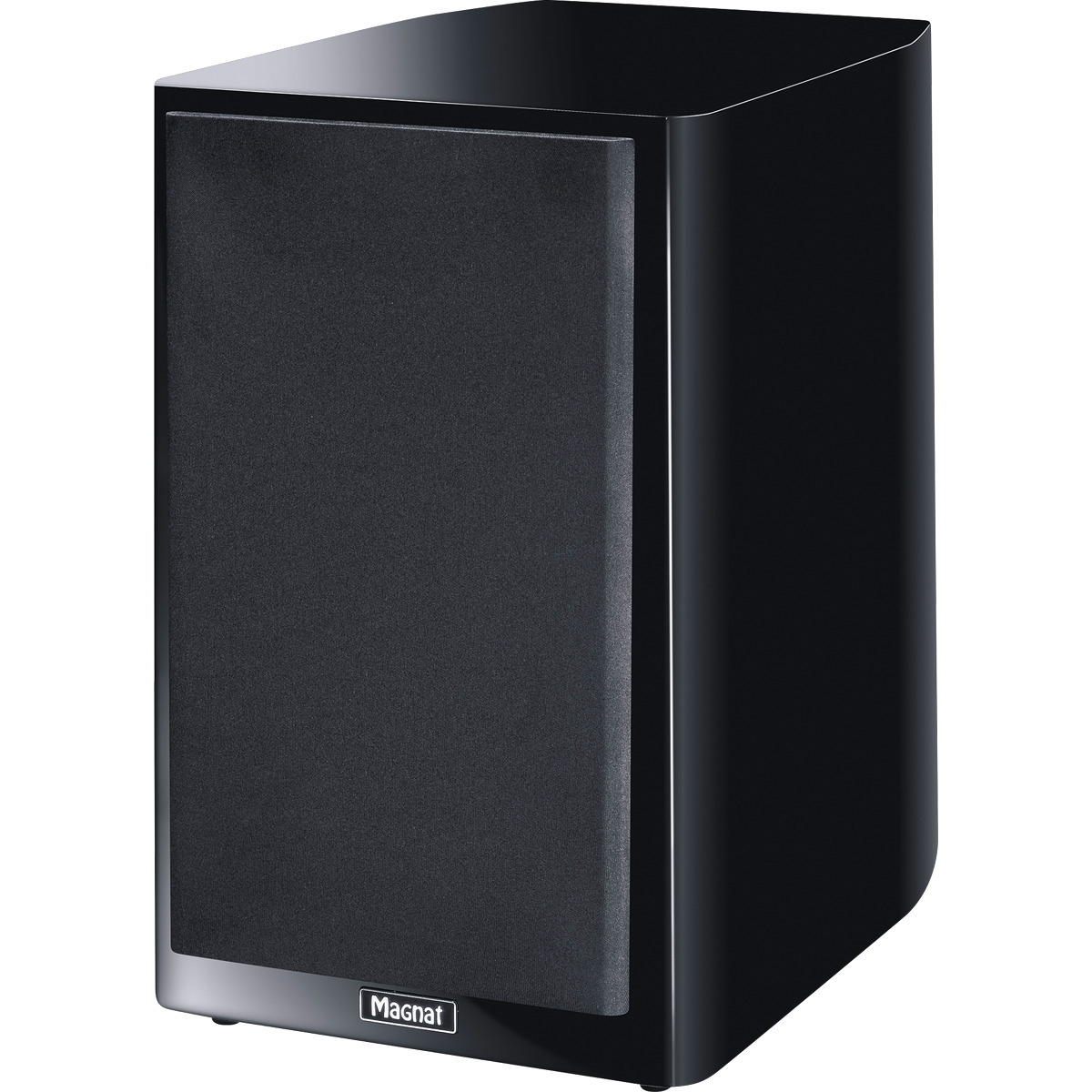

-Finish: Black piano lacquer or Macassar veneer
-Special sound guides in the solid ABS/aluminium front panel for optimum dispersion characteristics
-Powerful neodymium ring magnet systems for excellent dynamics
-Special sound guides in the solid aluminium front panel for optimum dispersion characteristics
-Newly developed high-res tweeter module with two fmax Signature dome tweeters
-30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
-Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 55 kHz
-Sophisticated voice coil ventilation for a particularly high degree of resilience
-Solid ABS/aluminium grille rings with 8 screw fixings
-Generously vented die-cast aluminium baskets to prevent turbulence and compression effects
-Distortion-optimised magnet systems
-Ceramic-aluminium sandwich membranes with high rigidity and optimum internal damping, optimised by inverse dust caps
-Klippel® optimised construction
-Large terminal panel with solid and encapsulated connectors to accommodate the use of high-quality heavy gauge cables
-Bi-wiring/bi-amping option, pre-installed cable bridges for single wiring
-Elaborate phase and amplitude-optimised APOC crossover
-High-quality internal wiring
-Very sturdily constructed, multi-braced MDF enclosure in a timeless-modern design
-Decoupling silicone feet and metal spikes included
-Magnat Airflex port with large openings ensure an optimum bass response without ambient noise
-Decoupling silicone feet included
-Noble high-gloss lacquered body (black version) or high-gloss lacquered real wood veneer (macassar version)
-Removable fabric protection grille with optimum sound transmission and invisible magnet attachment
Specifications
FREQUENCY RESPONSE 30 - 55000 Hz
PRINCIPLE 3 way bass reflex
EQUIPMENT 170 mm woofer-midrange 1.2" dome-tweeter 0.75" super-tweeter
POWER HANDLING (RMS/MAX.) 120 / 180 watts
IMPEDANCE 4 – 8 Ohms
CROSSOVER FREQUENCIES 2.400 Hz/17.500 Hz
RECOMMENDED AMPLIFIER OUTPUT > 20 Watts
SENSITIVITY (2.8V/1M) 91 dB
DIMENSIONS (WXHXD) 225 x 370 x 352 mm
