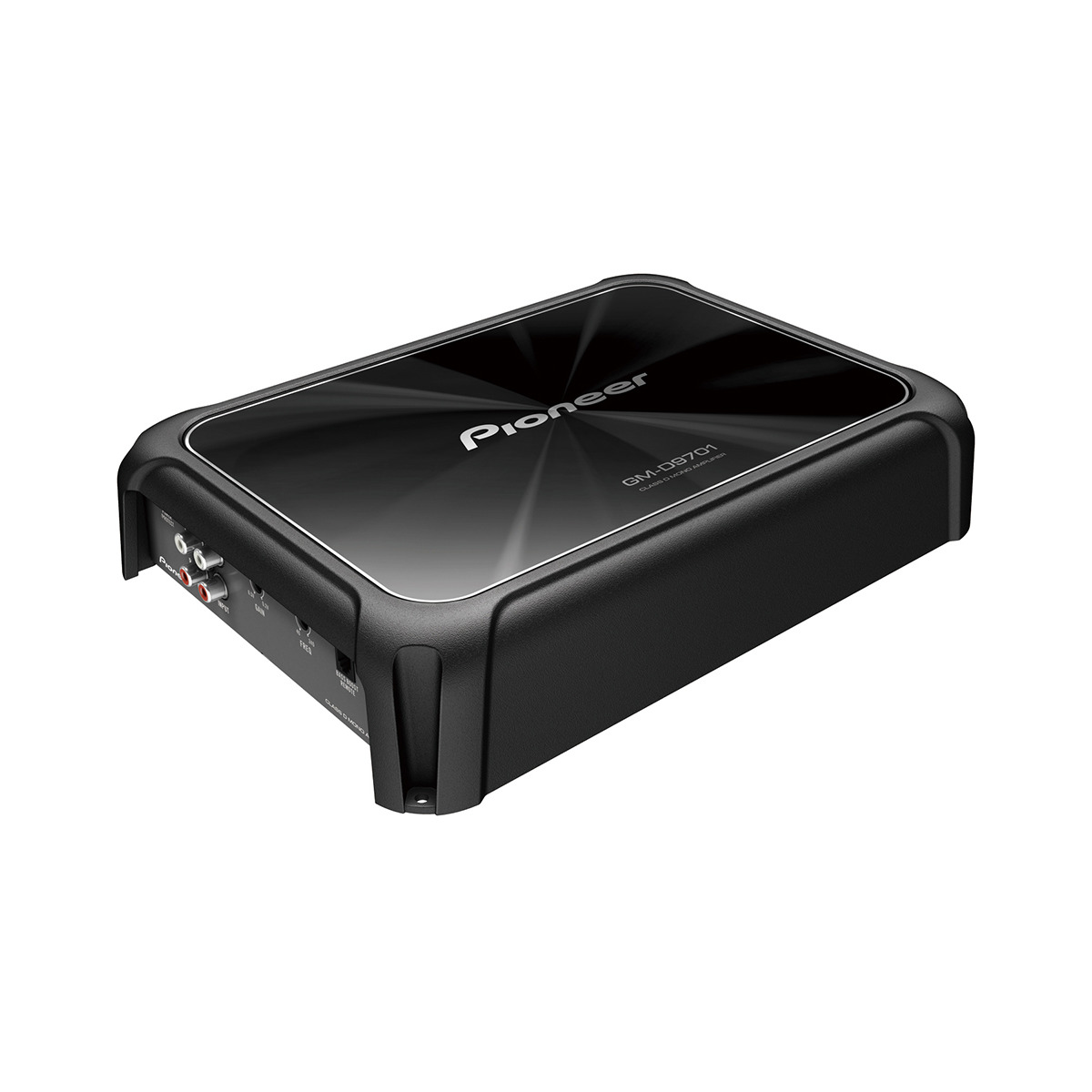

Mono 2400W Class-D Car Amp, with Bass Boost Remote

• 2,400 Watts Max Power

• Compact Design for Versatile Installation Options

• Wired Bass Boost Remote and Variable Bass Control

• 1 Ω Stable

Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

IMPROVED CIRCUIT DESIGN

To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.

VARIABLE LOW PASS FILTER

For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9701 LPF is adjustable from 40 Hz to 240 Hz.

TURN UP THE BASS

Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.

SPEAKER LEVEL INPUTS

What, you DON’T own a Pioneer headunit? Well, we won’t hold it against you. In fact we’ll even help you build onto your system. The GM-D9701’s speaker level inputs allow you to connect your OEM unit (or any unit that doesn’t have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you’ve got a Pioneer amp in your vehicle.

Number of channels 1

Max. Wattage (4Ω)

Max. Wattage (2Ω)

Max. Wattage Bridged (4Ω)

Frequency Response 10Hz - 240kHz

Wattage RMS (4Ω <=1% THD+N) 1 x 500w

Wattage RMS (2Ω <=1% THD+N) 1 x 800w

Wattage RMS Bridged(4Ω) n/a

Total Harmonic Distortion (1 kHz, 4Ω) <0.05%

Signal-to-Noise ration (IHF-A Weighted) >100 dB

RCA Outputs (Pass-Through) 2 Ch

Speaker Level Input 2 ch

Automatic Signal Sensing & Turn On Yes

Crossover Type Variable LPF

Crossover Frequency 40Hz - 240Hz

Dimensions 302 x 215 x 60 (mm)
