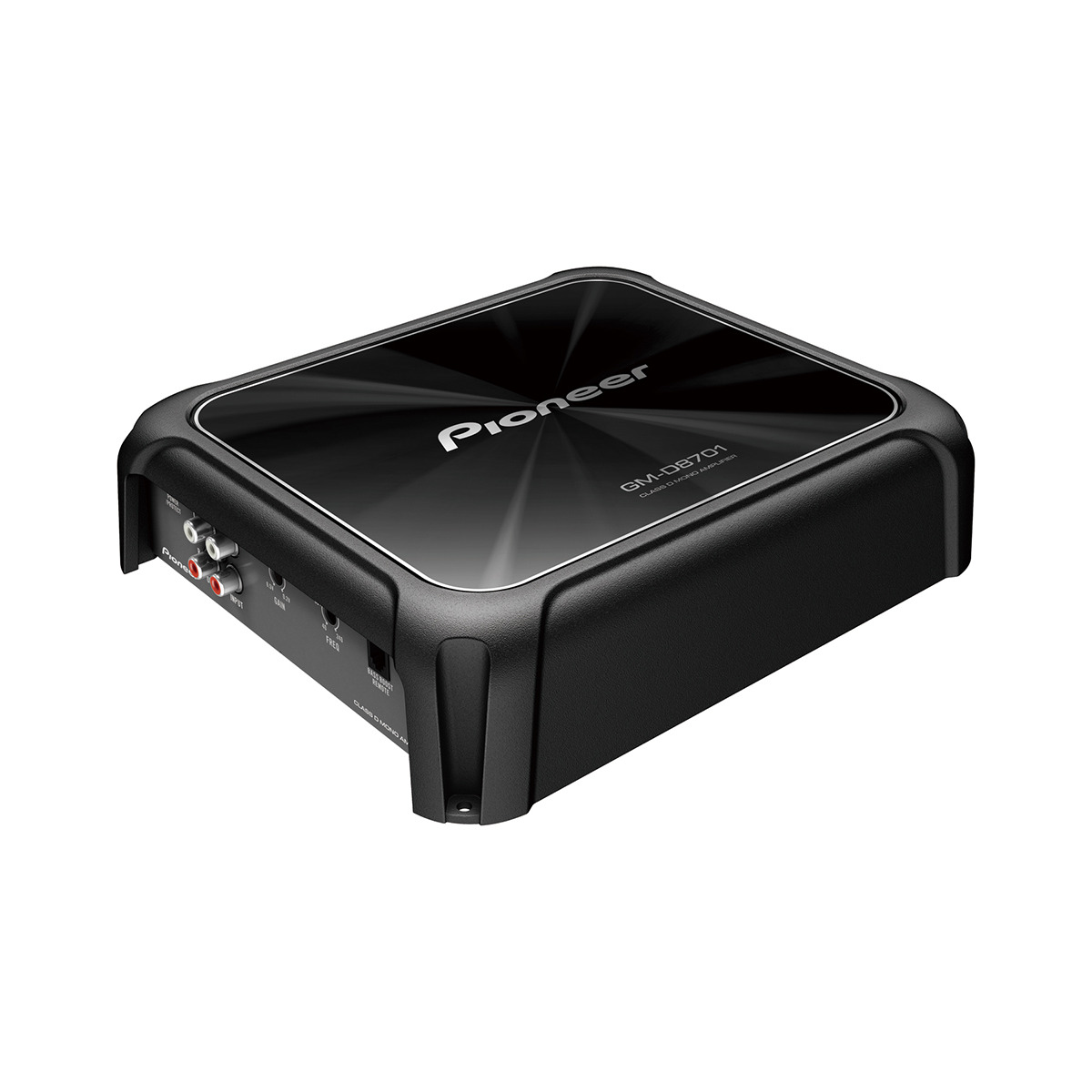

Mono 1600W Class-D Car Amp, with Bass Boost Remote

• 1,600 Watts Max Power

• Compact Design for Versatile Installation Options

• Wired Bass Boost Remote and Variable Bass Control

• 1 Ω Stable

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

BIG POWER, SMALL SIZE

Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

TURN UP THE BASS

Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.

VARIABLE LOW PASS FILTER

For extra flexibility, variable LPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D8701 LPF is adjustable from 40 Hz to 240 Hz.

SPEAKER LEVEL INPUTS

What, you DON’T own a Pioneer head unit? Well, we won’t hold it against you. In fact we’ll even help you build onto your system. The GM-D8701’s speaker level inputs allow you to connect your OEM unit (or any unit that doesn’t have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you’ve got a Pioneer amp in your vehicle.

Frequency Response 10Hz - 240kHz

Wattage RMS (4Ω <=1% THD+N) 1 x 300w

Wattage RMS (2Ω <=1% THD+N) 1 x 500w

Wattage RMS Bridged(4Ω) n/a

Total Harmonic Distortion (1 kHz, 4Ω) <0.05%

Signal-to-Noise ration (IHF-A Weighted) >100 dB

RCA Outputs (Pass-Through) 2 Ch

Speaker Level Input 2 ch

Automatic Signal Sensing & Turn On Yes

Crossover Type Variable LPF

Crossover Frequency 40Hz - 240Hz

Dimensions 252 x 215 x 60 (mm)
