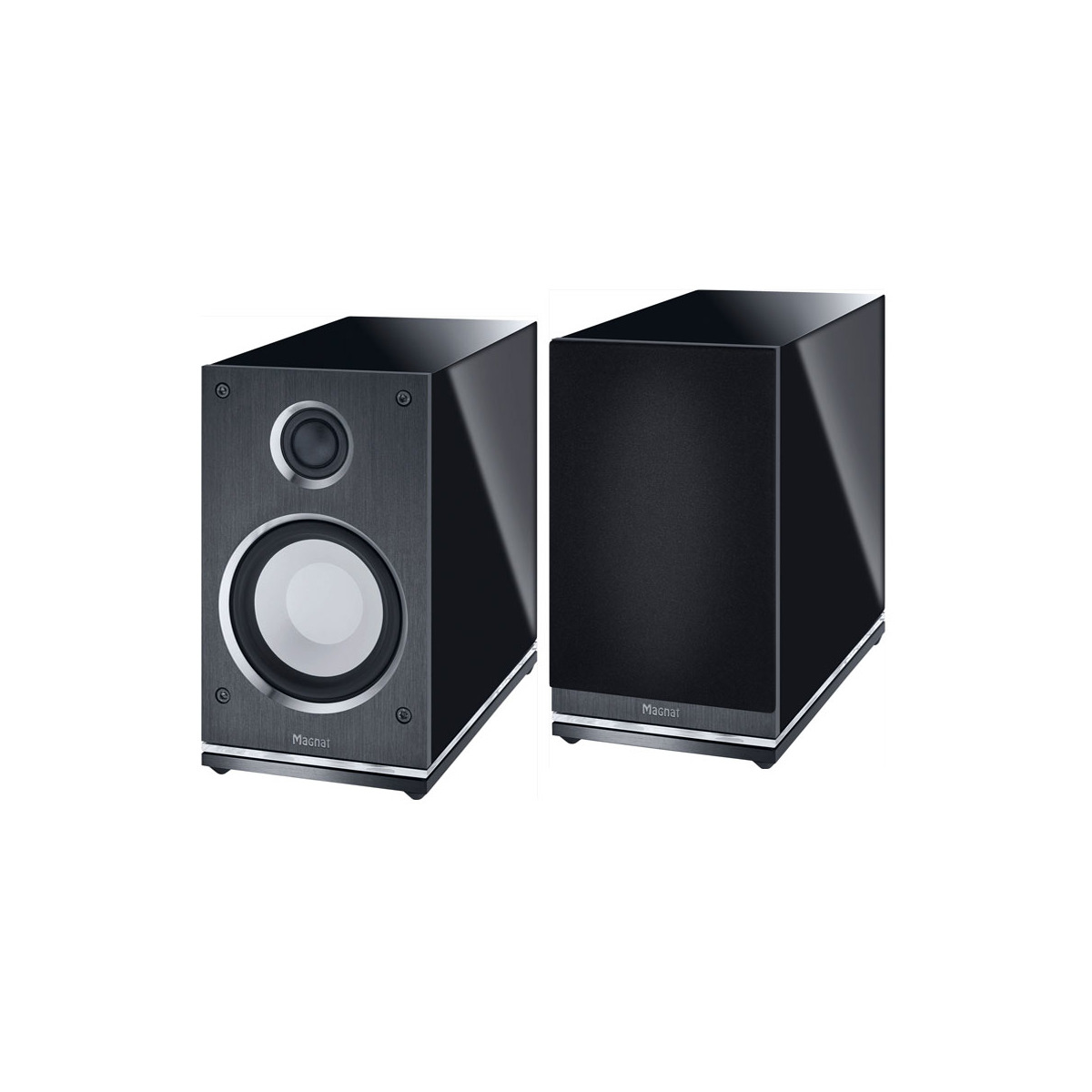

SHELF LOUDSPEAKER, 2 WAY BASS REFLEX

Outstandingly simple design with a skillful combination of acrylic glass, aluminium and magnificently finished lacquer surface

High-end in the smallest of spaces: Perfect reproduction over the entire frequency range with the Quantum Edelstein

25 mm silk dome tweeter with an extra-wide surround and high-performance neodymium magnet system for maximum dynamics and resolution

Klippel-optimized 110 mm chassis with ceramic-aluminium cone sandwich membrane and especially powerful magnet system

Sturdy MDF enclosure with high-gloss lacquer finish and solid aluminium front panel

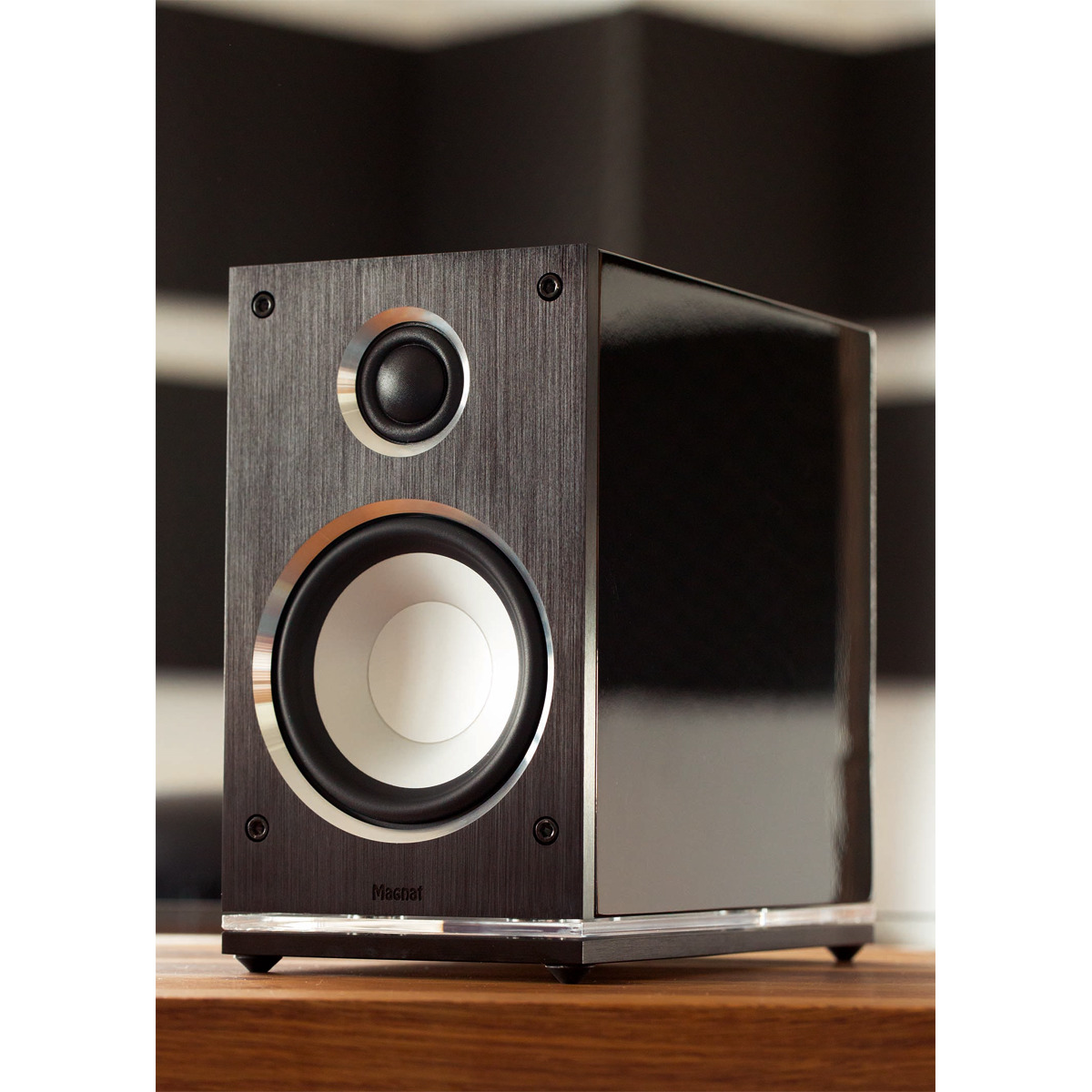

A compact housing in combination with above-average acoustic performance. Technological excellence and innovative design come together in this exceptional compact loudspeaker to create an acoustic masterpiece – a real gem!

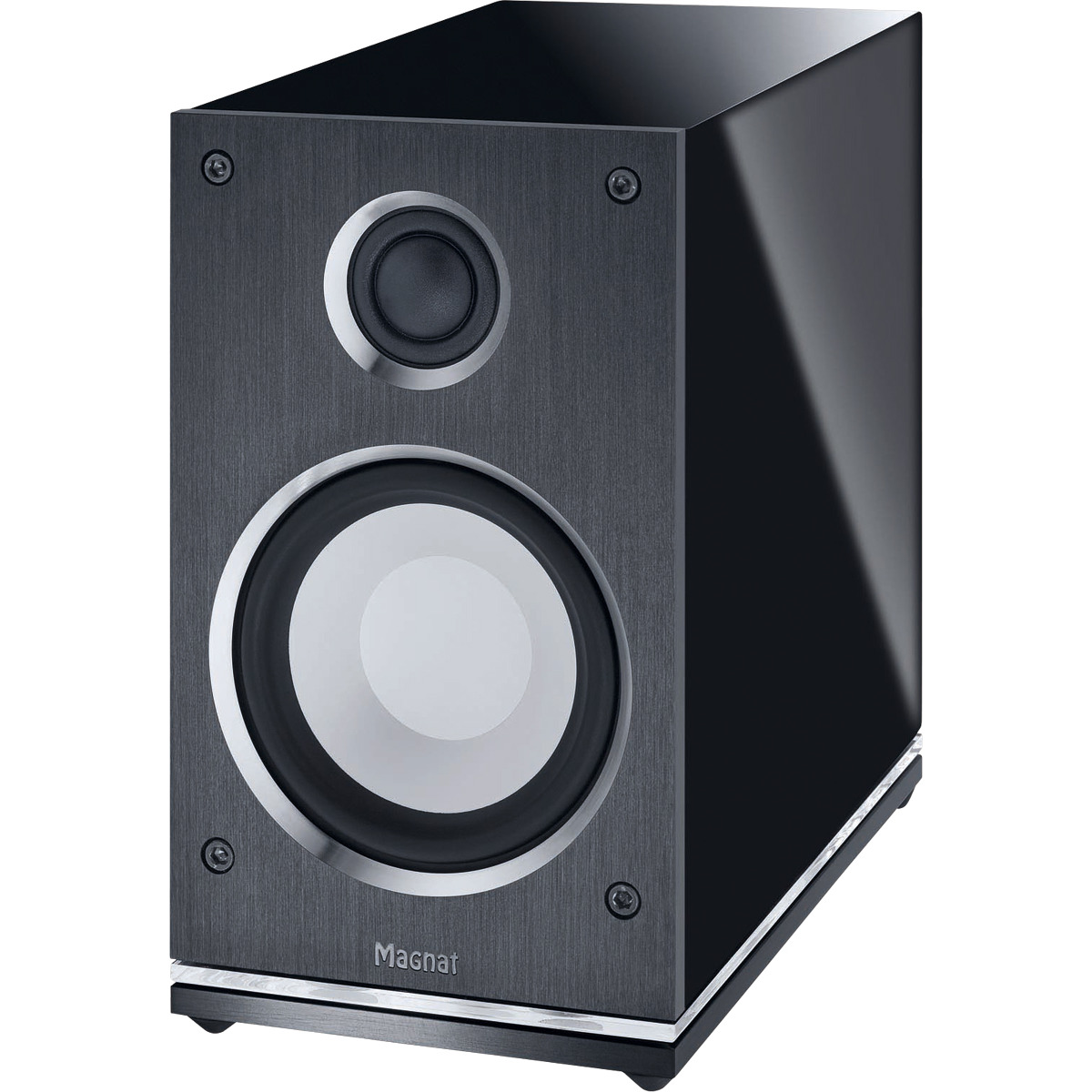

The front of the high-gloss varnished MDF body is adorned by a solid aluminium front panel with milled and burnished sound guide for the low-midrange loudspeaker and tweeter. The double base plate is also made of solid aluminium and has been combined with polished acrylic glass. Only high-quality components have been used for this two-way bass reflex system whereby the emphasis was placed on selected drivers (110 mm low-midrange loudspeaker, 25 mm dome tweeter and the also very high-quality cabling with particularly large cross-sections.)

PRINCIPLE - 2 way bass reflex High-End-Bookshelf Speaker

EQUIPMENT - 25 mm tweeter 110 mm woofer-midrange

POWER HANDLING (RMS/MAX.) - 75 / 150 watts

SENSITIVITY (2.8V/1M) - 90 dB

IMPEDANCE - 4 – 8 Ohms

FREQUENCY RESPONSE - 34 – 50000 Hz

CROSSOVER FREQUENCIES - 2500 Hz

RECOMMENDED AMPLIFIER OUTPUT - > 30 Watts

DIMENSIONS (WXHXD) - 135 x 232 x 246 mm

WEIGHT - 5 kg

MIDRANGE-WOOFER -

Airflow-optimized, non-magnetic aluminium die-cast basket to prevent turbulence and compression effects to handle large cone excursions

Distortion-optimised, powerful magnet system with induction ring and stray field optimisation, thereby ensuring minimal distortion and high efficiency

Kapton voice coil to minimise eddy current loss, thereby ensuring minimal distortion of the midrange and optimised efficiency

Aluminium/ceramic sandwich cone with an inverted dust cap for optimum rigidity with high internal damping

TWEETER -

Silk dome tweeter with a particularly wide surround for optimised dispersion characteristics at frequencies above 20 kHz

Special sound guide in the aluminium front panel for optimum dispersion properties

Mechanical coupling to the aluminium front panel for reduced intrinsic vibration

High performance neodymium magnet system for excellent dynamics and a high resolution

CROSSOVER - Elaborated phase and amplitude optimized crossover with selected high-quality components, High-quality interior cabling. Particularly low-impedance bass-midrange channel for minimal electrical loss

CONNECTIONS - Milled aluminium terminal with gold-plated screw connectors encapsulated in acrylic

CABINET -

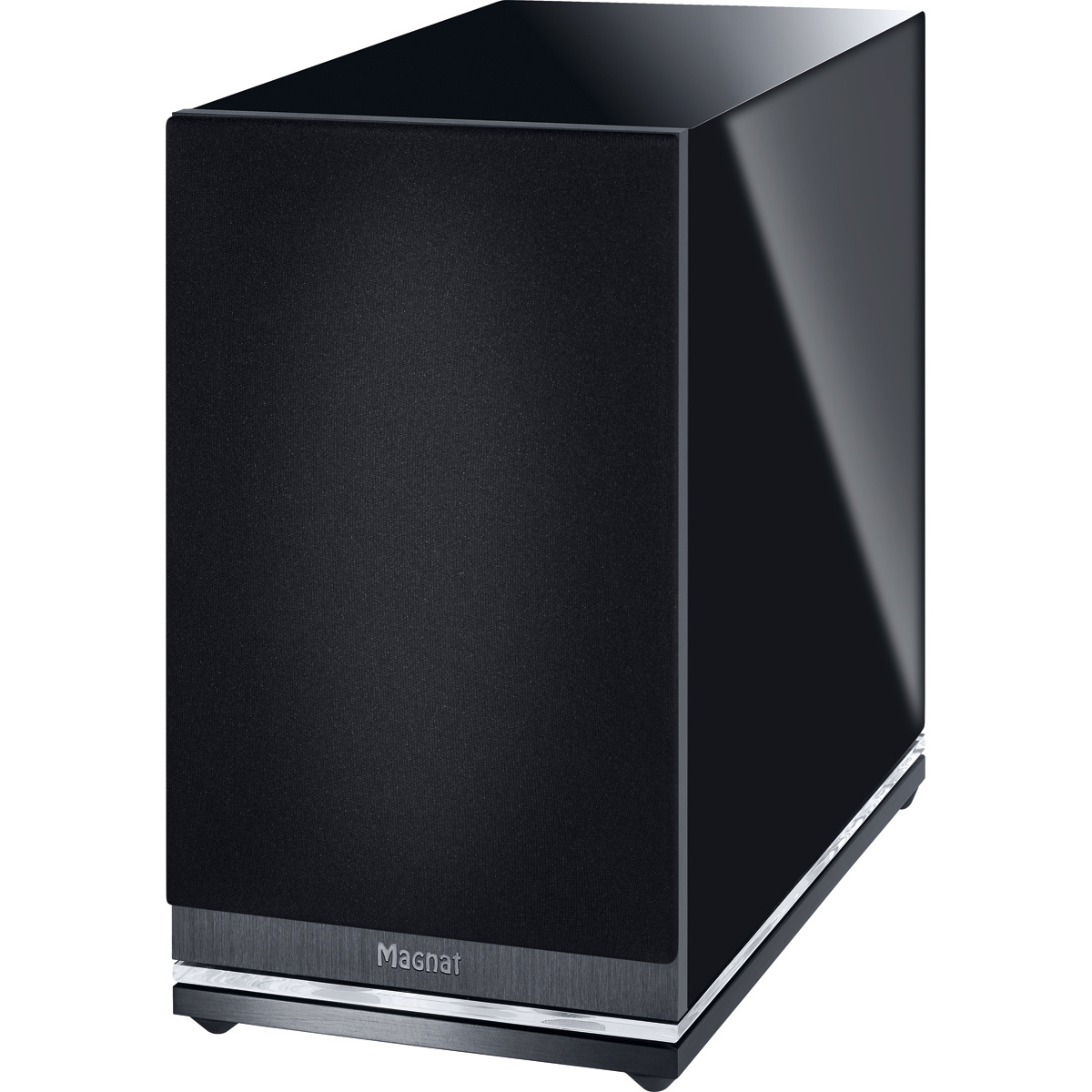

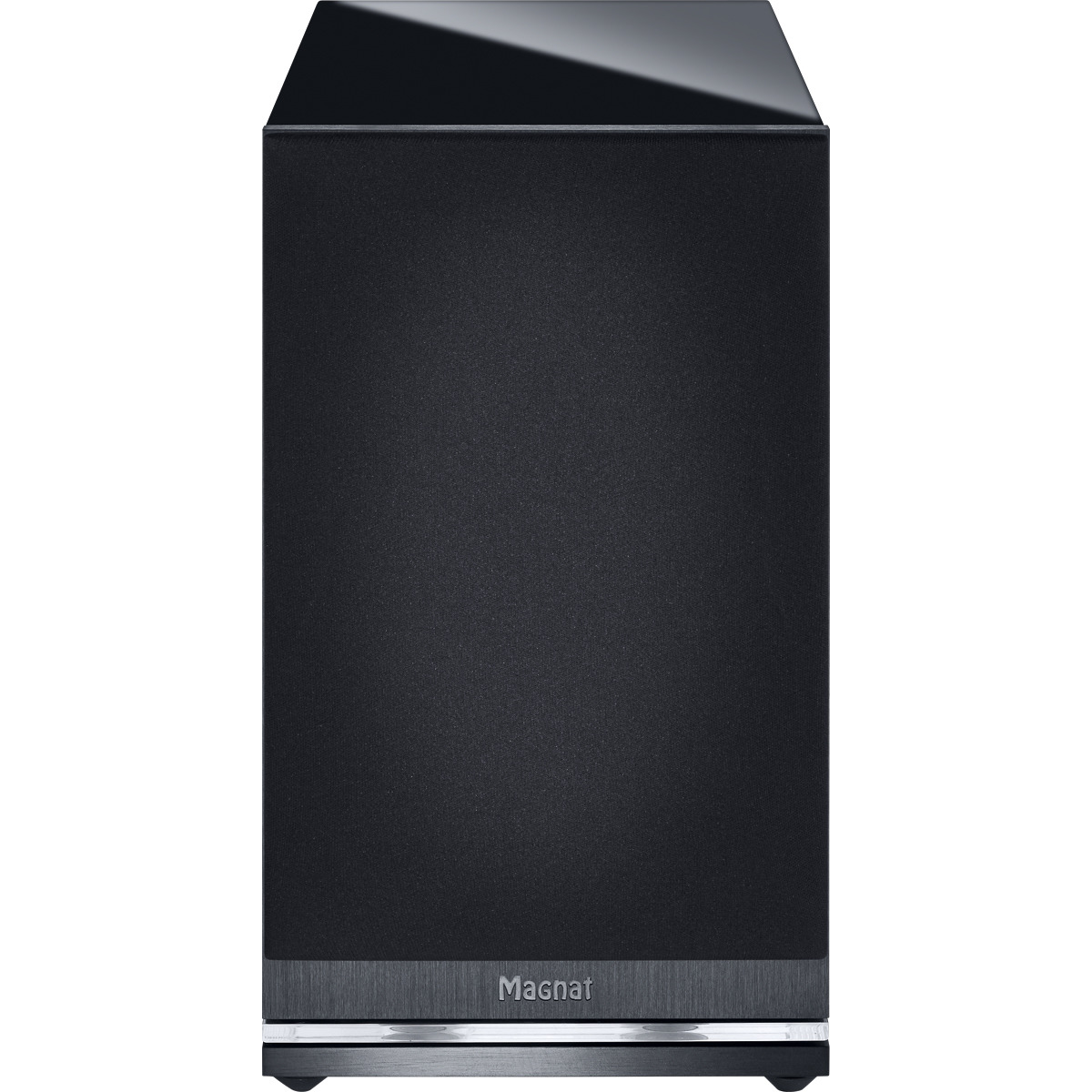

Sturdy MDF cabinet with high-quality glossy finish

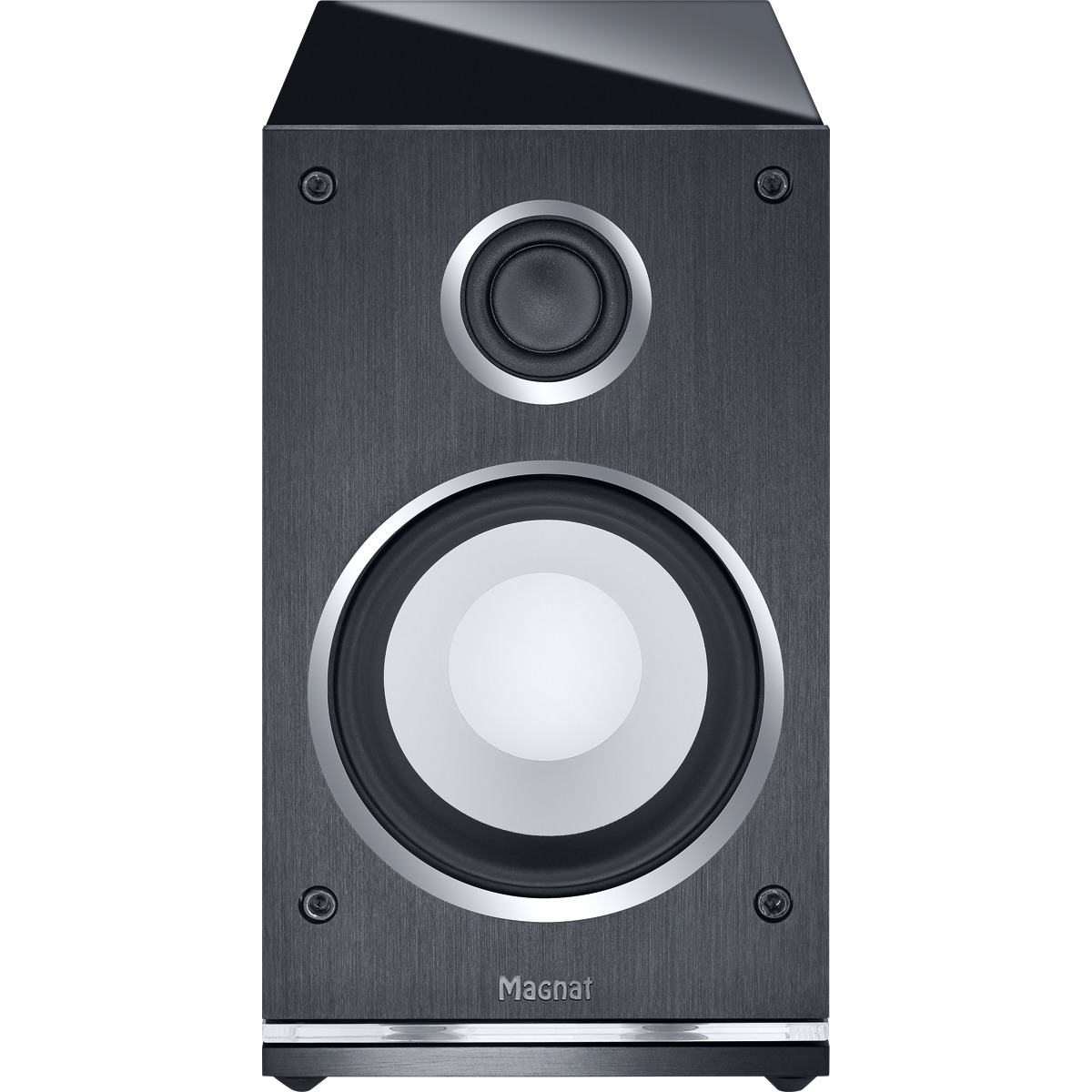

Solid aluminium front panel with machined and burnished sound guide for the bass-midrange driver and tweeter

Double base plate manufactured from polished acrylic glass and solid aluminium, decoupled from one another

Reinforcing board in the housing with chassis support for the bass-midrange, which ensures optimum low-resonance properties and minimal intrinsic vibration

CABINET SURFACE - Cabinet in high-gloss black finish/front panel and base plate in brushed and anodised aluminium, base plate in polished acrylic glass.
