HIGH-END HYBRID INTEGRATED AMPLIFIER WITH TUBE PRE AMPLIFIER

Perfect synthesis of an audiophile tube preamplifier and high-performance transistor output stage

Preselected ECC 82 tubes burnt in for 60 hours

Discretely designed power amps with 2 x 115 watts of rated output at 4 ohms

Wide variety of connection options including phono pre-amp (MM and MC)

Stylish enclosure design and modern operating convenience thanks to a high-quality system remote control

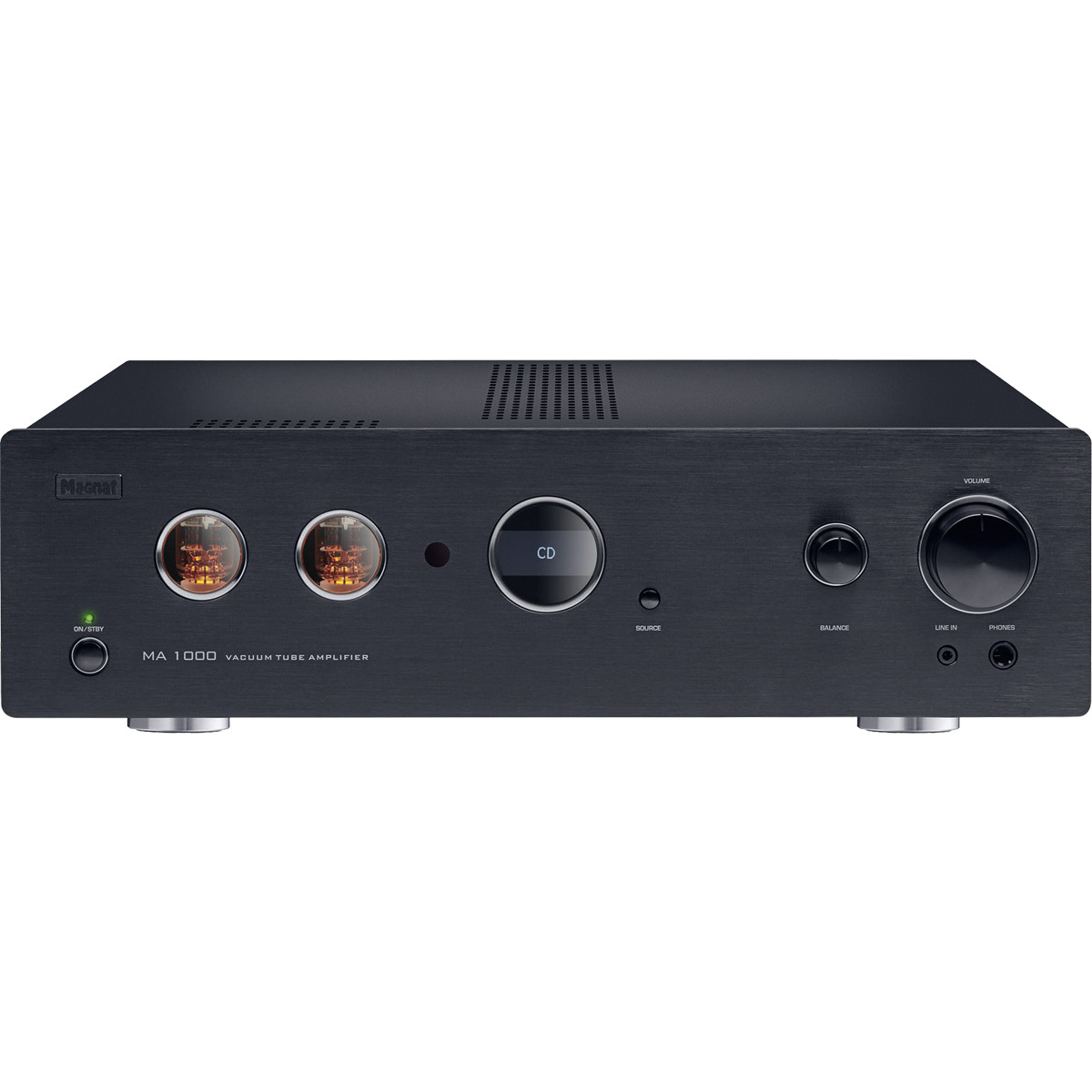

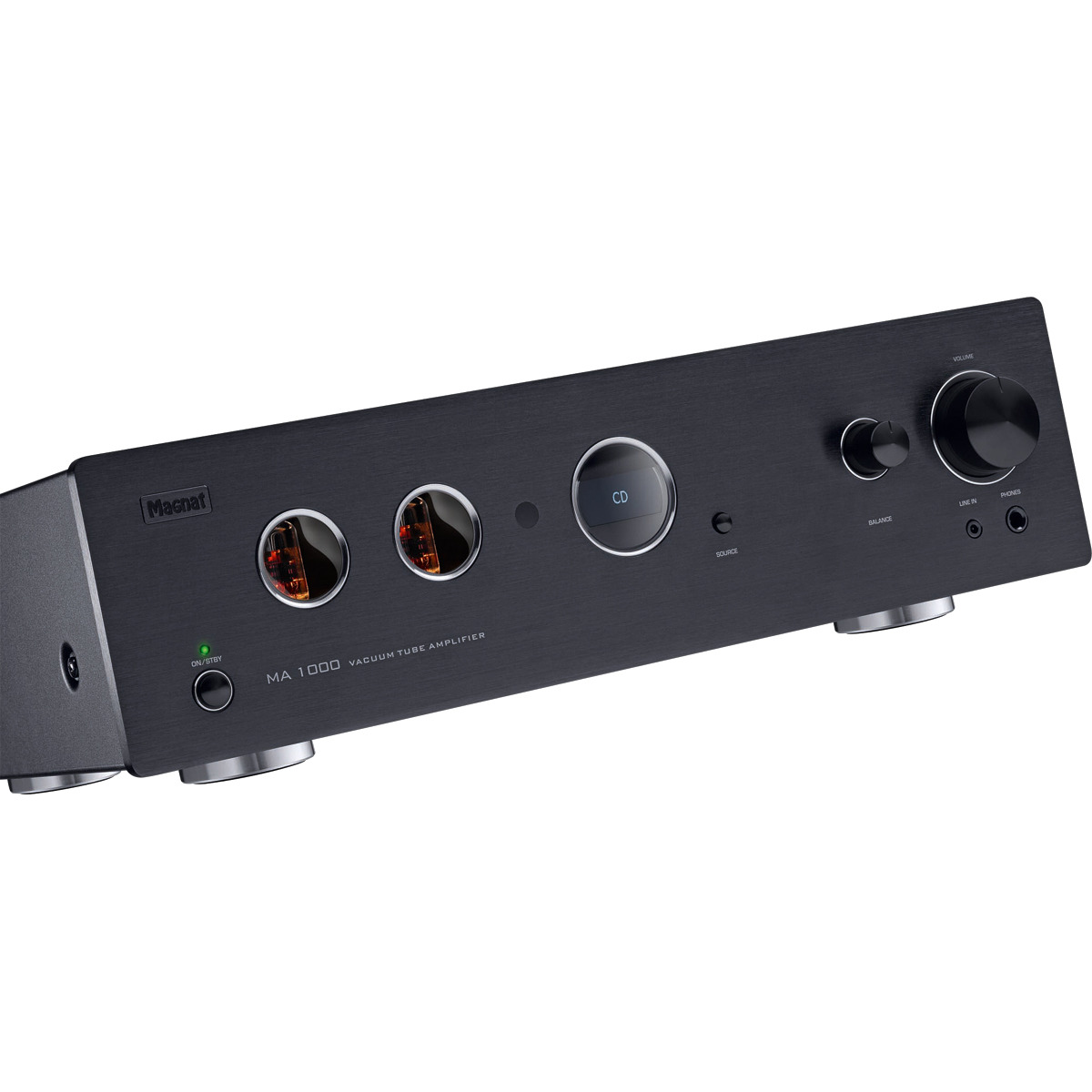

The MA 100 high-end integrated amplifier delivers the best of two "worlds": the audiophile sound produced by the high-quality tube pre-amplifier with the simultaneously massive and stable output of a modern transistor power amplifier! In combination, these different technologies create the perfect conditions for excellent acoustical performance. The heart of the MA 1000 is undoubtedly the tube pre-amplifier, which uses Russian-made pre-selected ECC-82 valves that have been burned in for 60 hours. A high-performance amplifier with discrete configuration using Toshiba power transistors delivers the necessary power. This thus provides the MA 1000 with 115 watts of continuous performance per channel.

POWER CONSUMPTION - Standby < 0,5 W Max 420 W

OUTPUT POWER / NOMINAL - 20 Hz – 20 kHz, THD < 1.0%, 4 Ohm, 2 x 115 W, 8 Ohm, 2 x 80 W

FREQUENCY RESPONSE - CD/Tuner/Aux/Line/Tape: 5 Hz – 100 kHz (-3,0 dB) CD/Tuner/Aux/Line/Tape: 20 Hz – 20 kHz (+/-0,1 dB) hono: 20 Hz – 20 kHz (+/-0,3 dB) hono Subsonic Filter: 16 Hz, 18 dB/Oct.

PEAK - 1 kHz, 4Ω: 2 x 250 W

INPUT SENSIVITY - Phono MC: 0,3mV/470Ω Phono MM: 2,5mV/47kΩ CD/Tuner/Aux/Line/Tape: 400mV/100kΩ

MAINS VOLTAGE - 230 VAC / 50 Hz

S/N RATIO - CD/Tuner/Aux/Line/Tape: 110 dB (A) Phono MM : 89 dB (A) Phono MC : 77 dB (A)

DIMENSIONS (WXHXD) - Remote control: 47 x 193 x 23 mm 434 x 125 x 330 mm (380 mm incl. controls and connectors)

COLOR - Black

WEIGHT - 11 kg

HIGHLIGHTS - Elegant full-metal system remote for controlling, Separate standby power supply for low power consumption in standby mode, High-contrast, state-of-the-art "Organic LED" display

AMPLIFIER AND POWER SUPPLY - Discrete high-performance amplifier with high quality power transistors from Toshiba. High-performance power supply with separately stabilised. supply voltages for the different tubes and circuits. Output rating of 115 watts of sine power per channel (4 ohms). Generously dimensioned toroidal transformer. Filter/electrolytic capacitors with a particularly large capacity (4 x 10000 µF)

PREAMPLIFIER - Preselected and burned-in (60 hours) tubes produced in Russia. High quality tube sockets with gold-plated contacts. Input signal switching via high quality reed relays. Phono preamplifier with separate MM / MC inputs, low-noise operational amplifiers and subsonic filters. Volume control via high-precision motorised potentiometer from ALPS. Low-loss WIMA audio capacitors in the signal path. Low-noise tube amplifier with 2 x 12AU7 / ECC 82 tubes.

CONNECTIONS -

4 high-level inputs

Additional 3.5 mm audio input on the front panel for connecting portable devices

Preamplifier output for connecting subwoofers or additional power amplifiers

Headphone output with high quality 6.3 mm jack

Bi-wiring output terminal with large, insulated speaker terminals

Phono MM and MC inputs

Record Out fixed level output

CABINET - Sturdy solid metal housing with 8 mm front panel, Solid aluminium control elements
