6.5" 2 X 2-WAY HIGH-END RECESSED SPEAKER (Price is for one)
Stereo ceiling loudspeaker for split-channel control
High-quality crossover with 3-stage level adjustment for the treble range

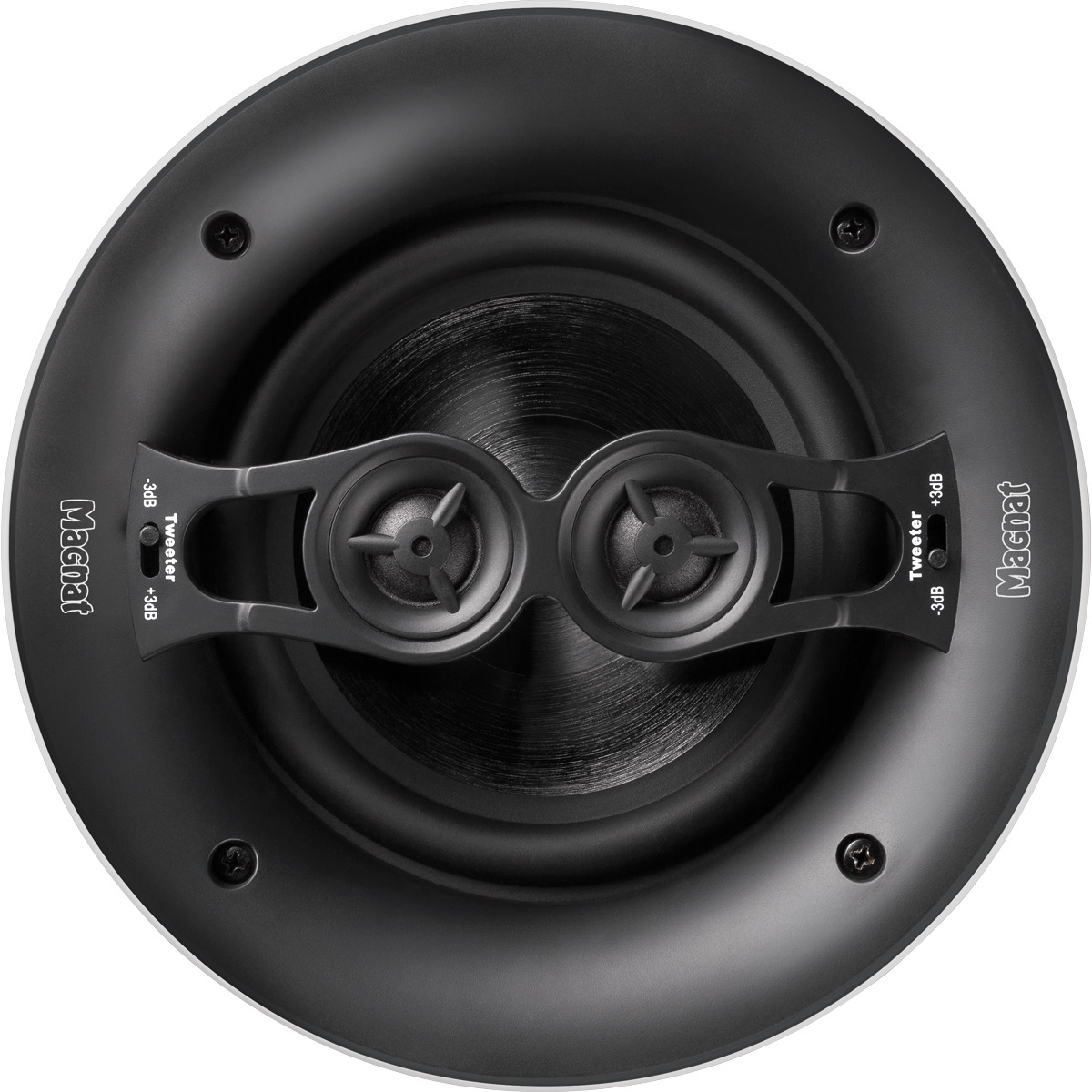

Two 19 mm soft-dome fabric tweeters
160 mm woofer with torsion-resistant ceramic-aluminium membrane
This built-in ceiling loudspeaker with particularly high-quality workmanship follows all the major parameters of Magnat´s Quantum technology. Just like the classic home-audio boxes, the ICQ 262 has also been equipped with bass/mid-range cones made from highly stable and torsion-resistant ceramic-aluminium. This material results in extremely accurate reproduction and reveals even the finest of acoustic details. This special model possesses two angularly disposed tweeters as well as an additional three-way treble level adjustment and, thanks to the dual voice coil and switch, may be used in mono and stereo mode. Cascading also is possible.
PRINCIPLE - 2 x 2 way in-wall/in-ceiling loudspeaker
EQUIPMENT - 2 x 19 mm tweeter 160 mm woofer
POWER HANDLING (RMS/MAX.) - 100 / 180 watts
SENSITIVITY (2.8V/1M) - 91 dB
IMPEDANCE - 2 x 4 Ohm
FREQUENCY RESPONSE - 34 – 26000 Hz
CROSSOVER FREQUENCIES - 4.000 Hz
RECOMMENDED AMPLIFIER OUTPUT - 20 - 200 Watts
OUTER DIMENSIONS Ø - 220 mm
CUTTING OUT Ø - 193 mm
MOUNTING DEPTH - 98 mm
WEIGHT - 1.4 kg
HIGHLIGHTS - High-End in-wall/in-ceiling loudspeaker. Special clamping mechanism for easy installation. Moisture-proof speaker system, suitable for use in humid rooms (bathroom)
CROSSOVER - Crossover with high-quality components and 3 settings for the tweeter level
CONNECTIONS - Gold-plated push terminal
LOUDSPEAKER DRIVERS - Double tweeter, double voice-coil for woofer, Stereo/Mono mode. Coated silk soft dome tweeter. Low-resonance aluminium woofer cone with hairline finish. Long-throw rubber surround for maximum excursion. Exclusive aluminium design protection grille
