POWERED HOME CINEMA SOUNDBAR WITH WIRELESS SUBWOOFER

Top-class soundbar home cinema systems with audio streaming via WLAN and Bluetooth®

Music services (e.g. Spotify® and others) can be streamed to the soundbar via mobile phone or tablet via Bluetooth® in top quality with the latest high-end audio standard Qualcomm®

Can be expanded for a powerful multi-room system

Multi-functional connectivity: In addition to WLAN and Bluetooth®, 4 HDMI® ports are provided for direct connection to a TV or other AV devices, as well as one digital and one analogue input

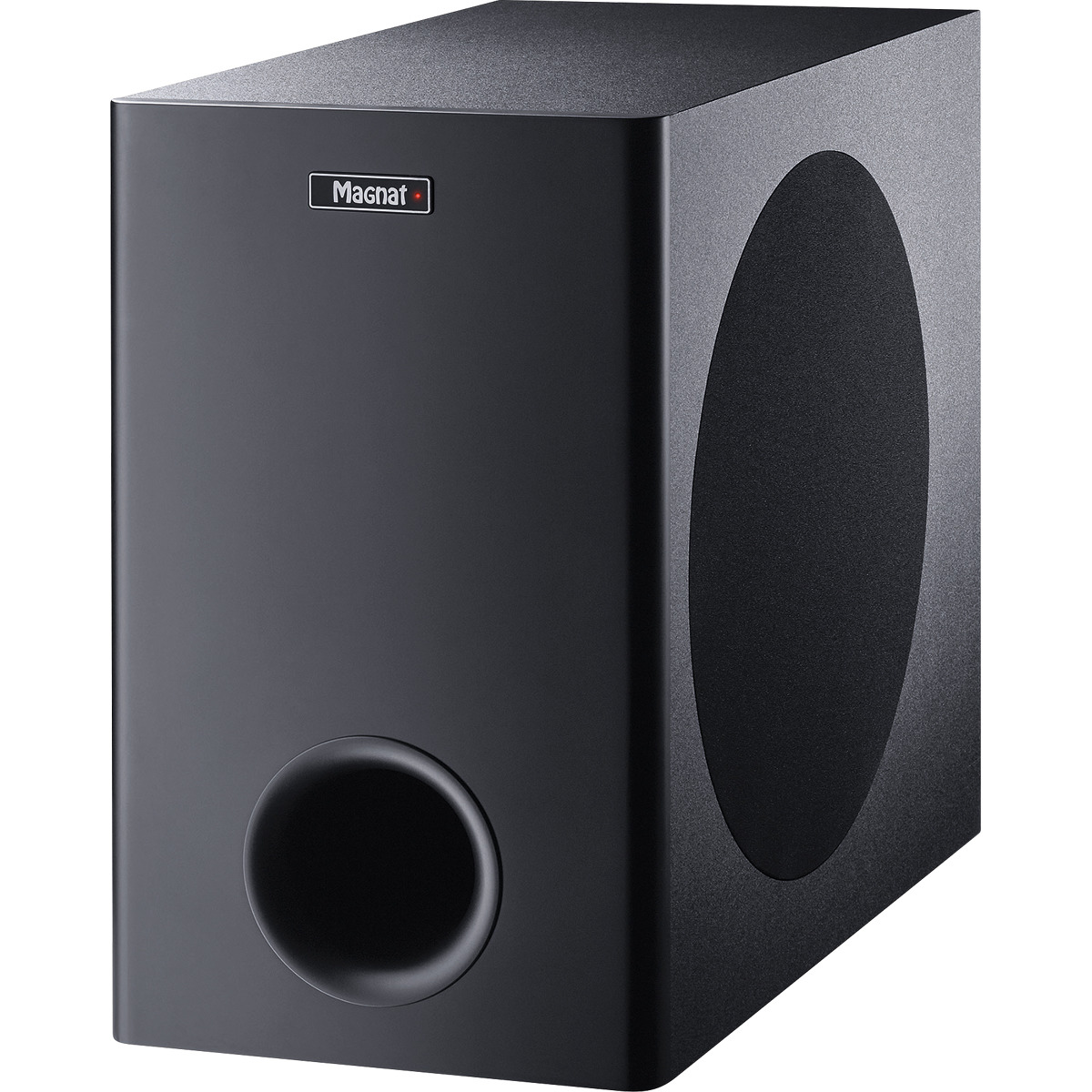

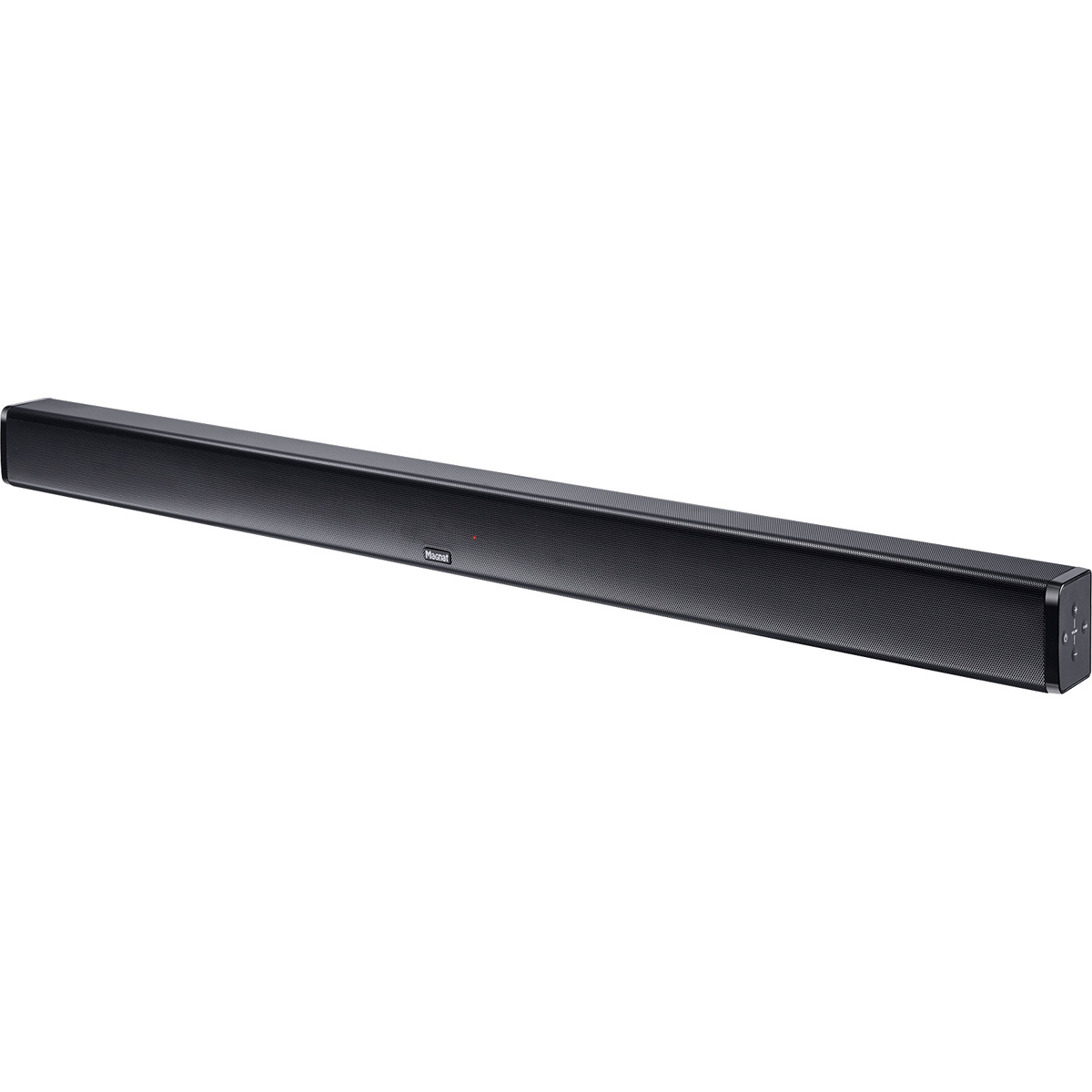

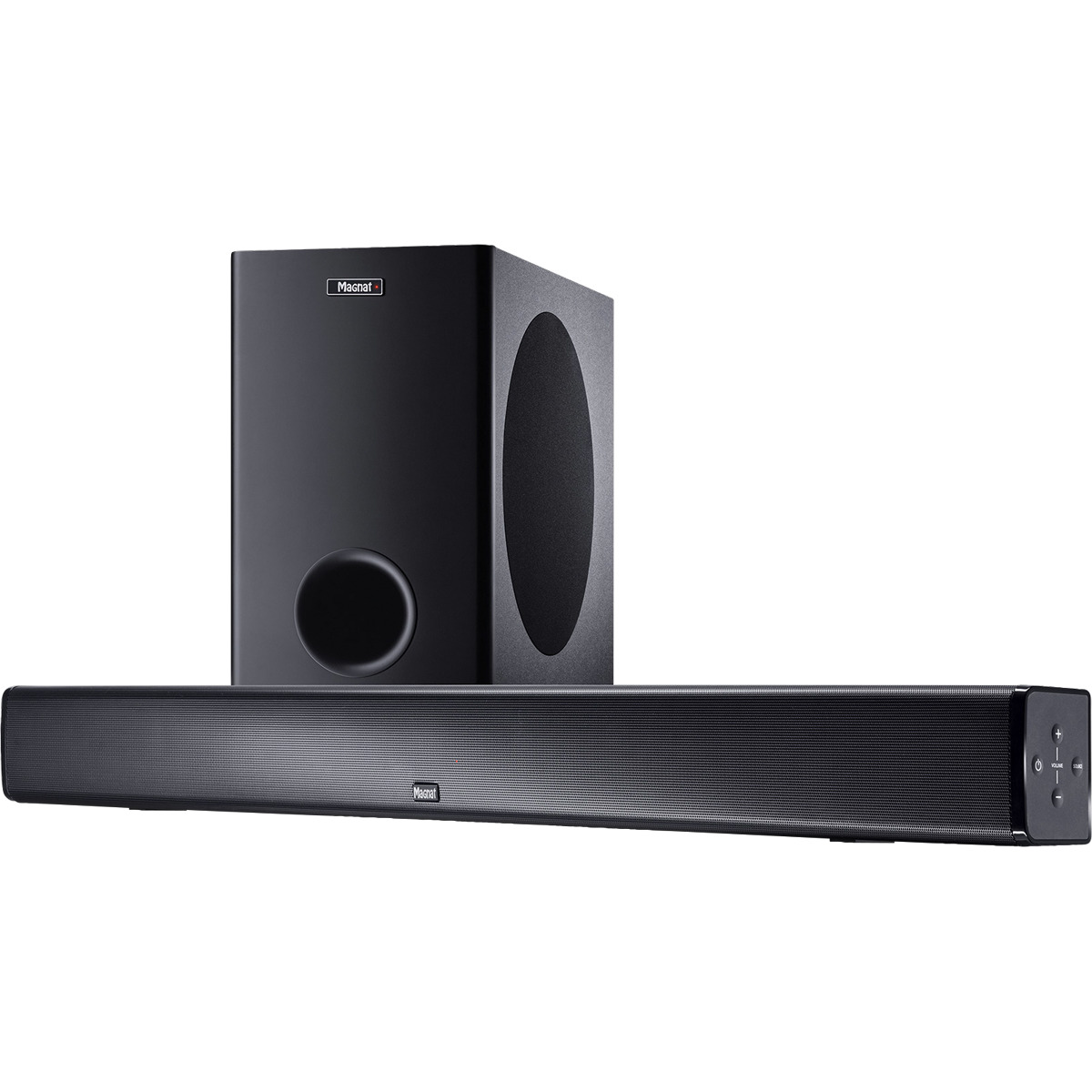

Fully-fledged, dynamic home cinema sound from a slim soundbar and a wireless high-performance subwoofer

Powered home cinema soundbar with wireless subwoofer, WLAN-Audio-Streaming, Bluetooth® and HDMI®

The Magnat CSB 1000 provides maximum home cinema enjoyment in the smallest of spaces: Hidden away in the compact soundbar format are six high-quality speakers and 160 watts of pulse power. The wireless subwoofer also provides up to an additional 200 watts of bass power, ensuring the low-frequency range required for a home cinema. Four HDMI ports, one digital optical as well as one 3.5 mm jack input and, not least of all, WLAN and Bluetooth® aptX offer extensive options for connecting audio and video sources. A DSP-controlled 3D surround sound program provides for impressive surround sound effects – without having to lay one single cable through the living room!

PRINCIPLE - 2 x 2-way systems, active (Soundbar) Powered bass reflex subwoofer

EQUIPMENT - 2 x 1“tweeter 4 x 1.4”x3.5“ midrange

POWER OUTPUT OVERALL - 180/360 watts

OUTPUT POWER (RMS/MAX.) - 4 x 20/40 Watt (L+R channel) 1 x 100/200 watts (Subwoofer)

FREQUENCY RESPONSE - 25 - 28.000 Hz

CROSSOVER FREQUENCIES - 180 / 3100Hz

DIMENSIONS (WXHXD) - 1000 x 79 x 60 mm (Soundbar) 230 x 382 x 418 mm (Subwoofer)

WEIGHT - 2.5kg (Soundbar) 9.4 kg (Subwoofer)

CABINET SURFACE - black

EQUIPMENT -

WLAN network connection, control via free Allplay Jukebox app for iOS and Android

Supports Qualcomm® Allplay™

Easy to install due to numerous inputs, can be connected directly to the TV due to HDMI®

Dolby Audio™ decoder (for HDMI® and digital input)

HDMI® with ARC and CEC function (Soundbar can be controlled via TV remote control)

3 additional HDMI® audio/video inputs with loss-free video repeater function, ultra-HD compatible (4K)

Bluetooth® with the latest high-end audio standard “Qualcomm® aptX™” ensures the transmission of CD-quality music

Perfect integration in the living room through the slim soundbar with a sturdy wall bracket and compact subwoofer

Realistic, DSP-controlled 3D surround sound for movies and music

Additional bass and treble controls (via the menu) for optimum sound adjustment

Adjustable subwoofer level

Night mode with reduced dynamic for use at volume-sensitive times

Entirely controlled through the system remote control

Easy-to-read LED info-display on the front panel

Various connecting cables included

CONNECTIONS -

HDMI®-ARC input for direct connection to the TV

Optical digital input

HDMI®-CEC function: Control via TV remote control (if the TV supports this function)

3 additional HDMI® audio/video inputs with video repeater function up to 4K resolution (the video signal is output to the HDMI®/ARC port)

Bluetooth® with Qualcomm® aptX™

WLAN input for integration in the home network

Analogue audio input (3.5 mm jack)

Separate power supply for the Soundbar
