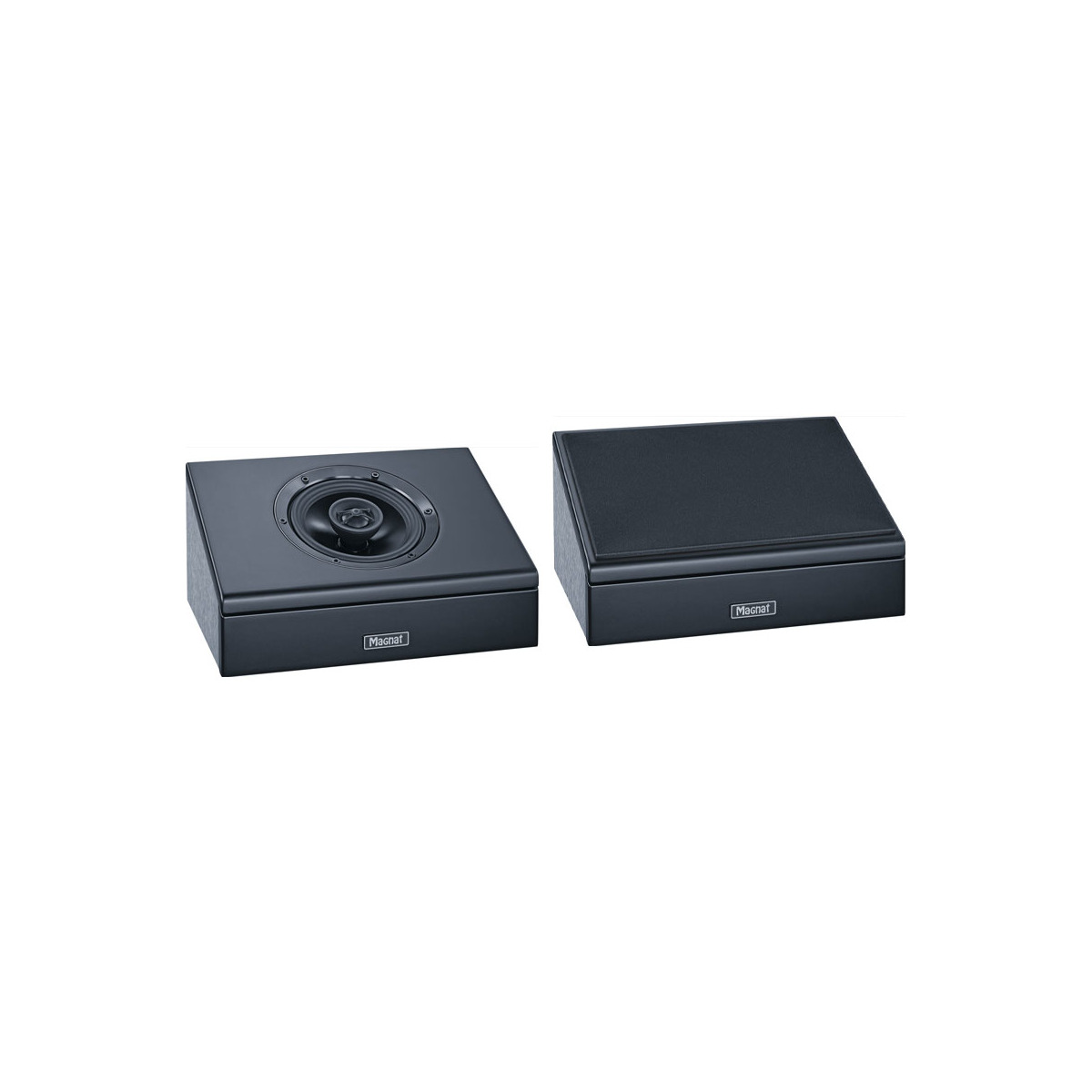

WITH DEFINED DISPERSION CHARACTERISTICS FOR PERFECT DOLBY ATMOS SURROUND SOUND

Extends a home cinema system to include the third dimension for a perfect surround sound experience

Compacter, efficient add-on speaker with a large number of application options

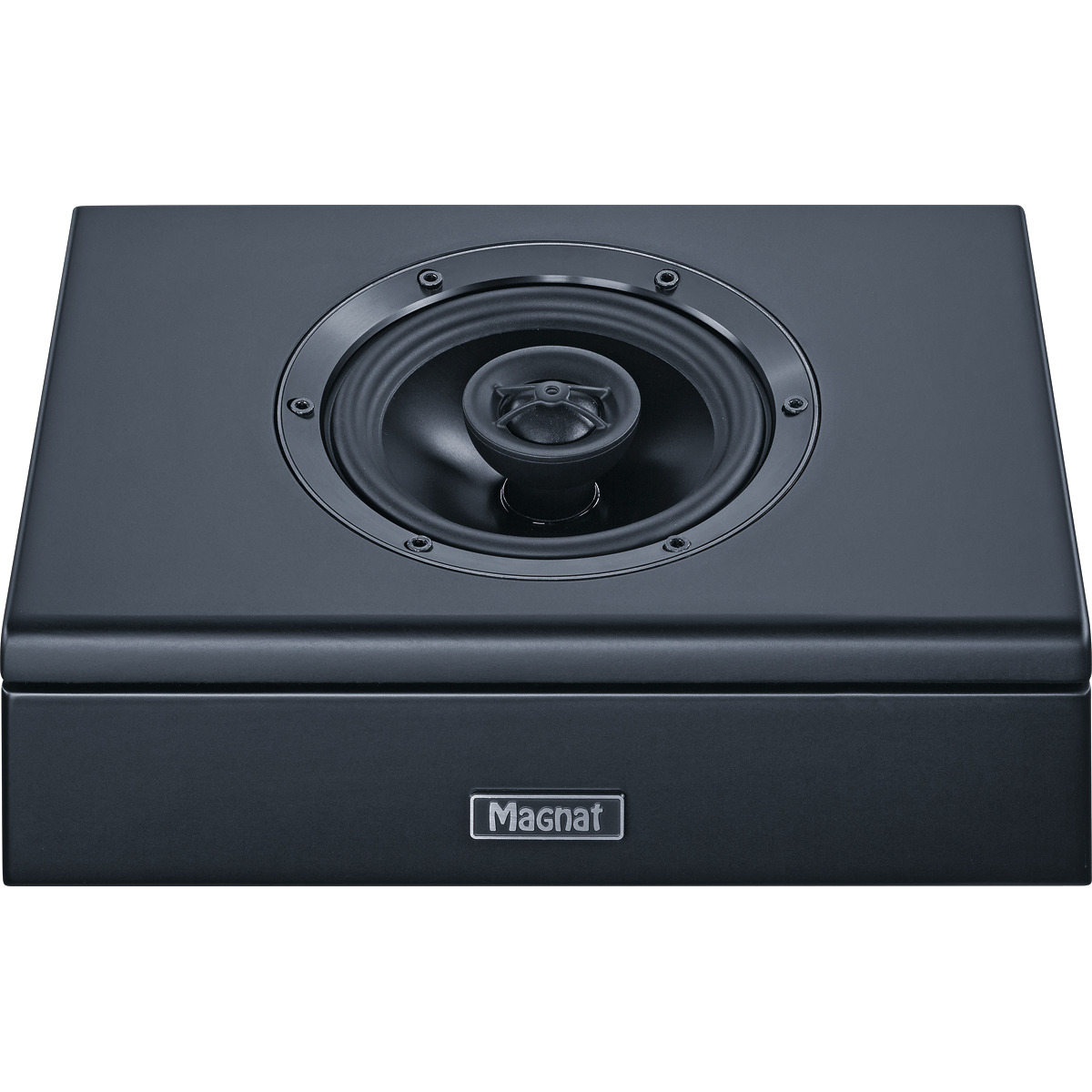

High-performance coaxial driver with 13 cm woofer and 25 mm dome tweeter

Can be used as a Dolby Atmos-certified add-on speaker on LCR 100-THX or as an overhead speaker on the wall or ceiling

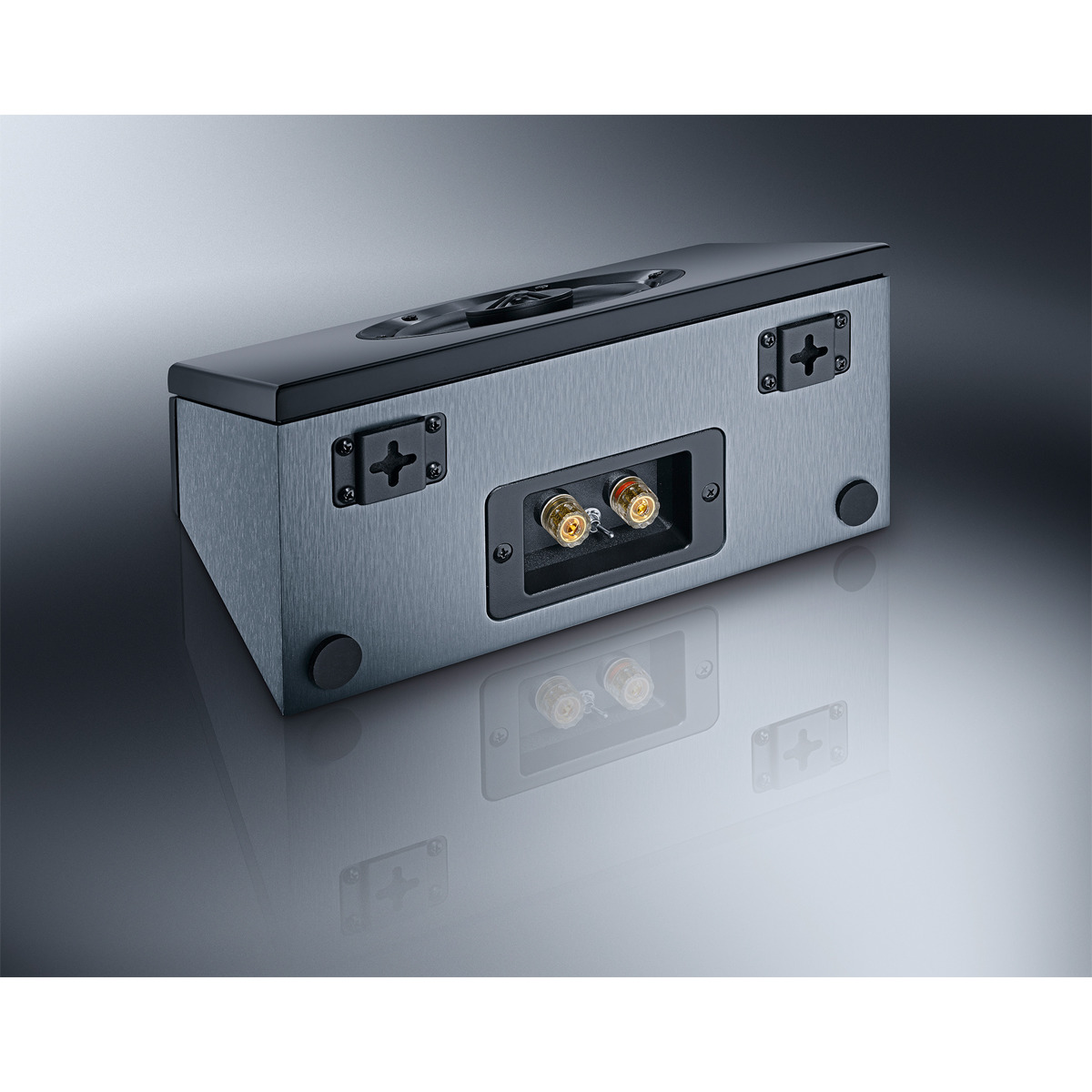

CROSSOVER - Switchable dual crossover in one loudspeaker, optimised for the respective operating mode, Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard. High-quality connection terminal with stable, gold-plated and encapsulated screw terminals and a toggle switch for selecting the operating mode

PRINCIPLE - Dolby Atmos-enabled high-performance add-on loudspeaker with direct-radiating mode

EQUIPMENT - 1 x 5,25" coaxial speaker

POWER HANDLING (RMS/MAX.)  - 50 / 120 watts

SENSITIVITY (2.8V/1M) - 89 dB

IMPEDANCE - 6 Ohms

FREQUENCY RESPONSE - 45 – 37.000 Hz

CROSSOVER FREQUENCIES - Atmos-Modus: 3.200 Hz Direct-Modus: 3.300 Hz

RECOMMENDED AMPLIFIER OUTPUT - 20 - 120 Watts

DIMENSIONS (WXHXD) - 280 x 150 x 188 mm

WEIGHT - 3.7 kg

CABINET

Detachable cloth grille with optimized acoustic transmissivity and hidden magnetic fixing

Stable enclosure in console form, with the dimensions and design adapted for combination with the Magnat Cinema Ultra system

Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look"

Closed housing for reproduction absolutely free of background noise at high levels

Sophisticated mounting system with numerous variations

o Wall-fixing mountings according to the widespread VESA standard, hole pattern 100x100mm M4;

o Sturdy metal wall brackets for wall mounting with silicone spacer;

o Adhesive silicone feet provided for set-up on front loudspeakers, sideboards etc.
