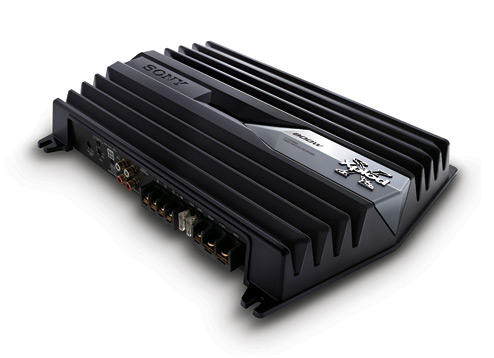

The Sony XM-GTX1302 Amplifier is a great amp for getting that little bit more power out of your 6″x9″s or 6″ speakers and even has enough power to run a low to mid power sub-woofer.
Features
130 Watts x 2 RMS at 4 Ohms
280 Watts x 2 max power at 4 Ohms
170 Watts x 2 RMS at 2 Ohms
400 Watts x 2 max power at 2 Ohms
340 Watts x 1 RMS at 4 Ohms
800 Watts x 1 max power at 4 Ohms This unit can be used as
a bridging amplifier with a maximum output of 800 Watts at 4
Ohms.
High Level input with Sensing Power On Direct connection
(High Level Input) can be made with the speaker output of
your car audio unit if it is not equipped with RCA line output. HiLevel Sensing power On feature allows the unit to be activated
without need for remote connection.
80 Hz Low-pass filter, 18 dB/oct Built in 80Hz 18 dB/Oct LPF
(Low Pass Filter) enables users to concentrate the power on
lower frequencies.
80 Hz High-pass filter, 12 dB/oct Built in 80Hz 12 dB/Oct HPF
(Hi-Pass Filter) enables users to block low frequencies to
improve the audio systems efficiency.
0-10 dB Variable 40Hz Low boost Variable 0-10 dB 40Hz bass
boost provides additional bass response at lower frequencies.
Specifications
Audio
Frequency Response: 5 – 50 kHz (+0/-3 dB)
Input Level: 0.3 – 6.0V (RCA input) or 1.2 – 12.0V (High Level Input)
Impedance: 2-8 Ohms Stereo or 4-8 Ohms Mono
Operation: 2/1 channel configuration
Tone Control(s): Low Pass Filter: 80Hz, 18dB/Oct
High Pass Filter: 80Hz, 12dB/Oct
Harmonic Distortion: 0.05% (at 1kHz)
Low Boost: 0-10dB Variable (at 40Hz)
Signal-to-Noise Ratio (dB): 93 dBA
Power
Output Power: Maximum Output: 280 Watts x2 or 800 Watts x1
(at 4 Ohms)
Current Drain: At rated output: 30A (at 4 Ohms)
Remote Input: 1 mA
Rated Output: (20Hz-20kHz, 1% THD+N, 14.4V) 130 Watts x 2
RMS (4 Ohms)
170 Watts x 2 RMS (2 Ohms)
340 Watts x 1 RMS Mono (4 Ohms)
Power Requirements: 12V DC Car Battery (Negative Ground)
Internal Power Supply: OTL Output Transformerless Circuit
Pulse Power Supply
Input Voltage: 10.5-16V Power Supply Voltage
Inputs and Outputs
RCA Audio Input(s): Pin Jacks: 0.3 – 6V
Audio In: RCA Pin Jacks, High Level Input Connector
Overall this amp has enough power to run even the most demanding 6″x9″s, is robust like all Sony amps and is priced very fairly in comparison to similar models!
