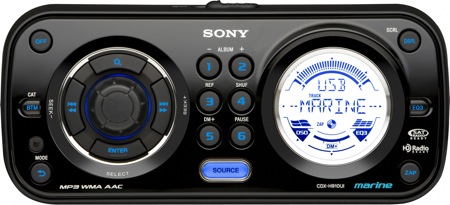

Sony CDX-H910UI Product Review

The Splash-proof Sony CDX-H910UI Top-Of-The-Range Marine Head-Unit is a versatile and smart marine audio solution that lets you listen to music several ways with excellent sound quality. Connect, charge, and control your iPod, Walkman player, or other digital music players with USB, an innovative feature that also displays song title, artist, track and more.

General:

2 Volt Pre Out Output Level
220 oHms Pre Out Impedance
52 Watts Maximum Output Power (1kHz)
27 Watts Rated Output Power
Conformal Circuit Board Coating
Anti-Rust Reinforcement
Splash Proof
UV Resistant
Salt Fog Resistant

Dimensions: 197 x 89 – 187mm (W x H x D)
Mounting Dimensions: 181 – 52 – 144mm  (W x H x D)

Accessories:

RMX151 Wireless Card Remote (Incl.) , RM-X60M / RM-X11M Wired Rotary Commander (Opt.)
Display Panel

LCD Display:

Colour Glossy Black on Matt Black Panel Finish
Blue / Red Key Illumination

Tuner:

Preset FM18 / AM12
Best Tuning Memory
FM: Tuning Range (MHz) 87.5-107.9, 87.5-108.0
MW: Tuning Range (kHZ) 531-1602, 530-1710
FM: Usable Sensitivity (75Ω) (dBf) 10
FM: Intermediate Frequency (MHz) 150KHz
FM: Selectivity (400kHz) (dB) 75
FM: S/N Ratio (Mono) (dB) 70
FM: Channel Separation (dB) 40
FM: Frequency Response (Hz) 20-15k

CD Deck:

CD-Text Display / Scroll
Multi Session MP3 / WMA / AAC
Frequency Response (Hz, dB) 10-20k, +/-1dB
S/N Ratio (dB) 120

Amplifier:

S-MOSFET Output Power 52W x 4
D/A Converter 24 bit
Pre Out x 2
Sub Out
Rear Aux-In
Rear USB
Dynamic Soundstage Organiser 2 (DSO2)
EQ3 Stage 2 (3-Band Equalizer / 7 Modes)
Bass Treble Low / Mid / High

iPod Control Feature:

Repeat One, Album, Artist, Playlist, Genre, Podcast
Shuffle Genre, Album, Artist, Playlist, All, Podcast
Pause
Resume Play
CODEC (for iPod) MP3, AAC
List Browsing (Folders / Files)
Passenger Control
ZAPPIN

USB:

Repeat Off / Track / Folder
Shuffle Off / Folder / Device
Pause
Resume Play
CODEC (for USB) MP3, AAC

Designed with a retro, sporty look that is similar to the other dials found in a boat cockpit and the CDX-H910UI is splash-proof too. It is also sun and salt-resistant, and its large buttons and display make it easy to use. It also has a rear RCA auxiliary input for expanding marine entertainment options.
