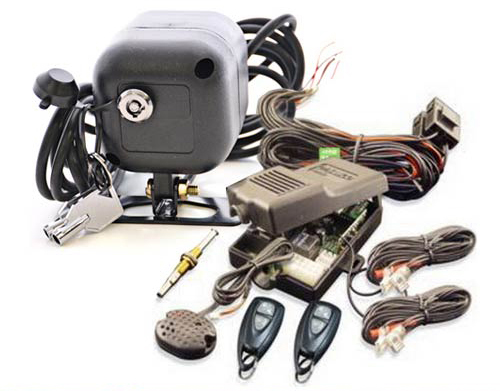

The DYNATRON D3800 Car Alarm is a good 5 Star Car Alarm in my opinion with the option of many extras to be added if needed. It has forced entry protection of doors, boot and bonnet with a glass break sensor.
Audible warning is achieved via a 120dB battery Back-up siren, visually via the vehicle indicators and a dash mounted high intensity red LED. You also have the control of silent alarming via remote with some alarms (not all) on the market not having this option.
Features:
Operation
Arming procedure while ignition is off:
The system will arm immediately if the main button of a valid remote control is momentarily pressed, the doors will lock and all security functions will become active.
Disarming procedure:
The system will disarm when the main button of a valid remote control is pressed
Auto Arming feature:
The immobiliser will automatically immobilise the engine 39 seconds after the engine has stopped, if the vehicle is left untouched.
Immobilisation
Two independent circuits of Immobilisation:
40 Amp rated, normally open contacts.
Automatic immobilisation:
39 seconds after ignition switch is turned off.
Safety circuitry in case of power failure:
System sources alternate power from ignition if main power is lost.
On Board Relays
On-board relays:
Protection against harsh road conditions: All relays are fully encapsulated to provide protection against dust and moisture
Remote Controls
Rolling code encoder:
With over 18,000,000,000,000,000,000+ code combinations, transmitting via 433MHz PWM RF signal.
Large system memory:
Allows system to track seven remote controls.
Two polycarbonate remote controls:
Controller re-programming: Service technician can delete lost or stolen controllers from memory.
Wiring
Security wiring:
All cables extending from the module are black and same diameter.
Plug and play for service:
Designed to allow easy access for service technicians
Security Housing
Connector plug:
Is enclosed within module case to prevent access by thief.
Stealth wiring:
Cutting any immobilisation wiring will still leave the car secure.
Override
Emergency Personal Identification Number override:
Enter the secret four digits to override the immobiliser .
PIN card:
Secret override PIN is supplied on handy 90mm x 50mm card.
Visual Output
Bright red dash LED:
This LED flashes to inform user when system is armed. The LED is mounted on the driver’s side dash and is visible from outside the window.
Arm/Disarm confirmation:
System flashes car indicators when arming or disarming.
Alarm illumination:
System flashes car indicators when thief triggers alarm.
Audible Output
Dynatron Siren:
115Bd Negative siren output
Arm/Disarm confirmation:
Optional.
Intrusion Detection
Optional sensors for the D3800 Series
Doors, bonnet and boot monitoring:
Triggers alarm system if intruder opens any protected entry point in vehicle.
Standard: Glassbreak Sensor:
Digital oscillating Quartz sensor to detect the frequency of breaking glass.
Optional plug-in Ultra-Sonic sensor:
Sensor produces a 40KHz sound wave and measures echo to detect intruder.
Optional plug-in single zone Microwave sensor:
Sensor produces a microwave field to detect intruder.
Optional plug-in Dual Zone Microwave sensor:
Sensor produces two microwave fields, exterior field to warn away, interior to trigger alarm fully.
Optional plug-in single stage shock sensor:
Sensor measures vibration subjected to vehicle to detect intruder.
Optional plug-in two stage Shock Sensor:
Sensor measures two levels of shock, soft shock to sound warn away, heavy shock to trigger alarm fully.
Optional Plug-in Tilt Shock Sensor:
Dual Tech sensor measures vehicle angle with respect to set point and triggers if angle changes. Full response added to detect impact.
Optional PIR Sensor: Sensor detects movement within confines of the vehicle using infrared transmission – especially suited to utility canopies and box vans. Not disturbed by air movement.
Central Locking
Locks and unlocks all doors:
System can trigger factory central locking, aftermarket central locking or central locking relays.Extend pulse length to drive pneumatic central locking systems (Mercedes).
Automatic re-locking:
System will re-arm and re-lock doors if previously disarmed by remote control and doors remain closed.
Anti-hijacking protection:
System locks doors when ignition is turned on, unlocks when ignition is turned off.
Dual stage unlock:
Allows user to unlock driver’s door before unlocking all other doors.
Convenience Functions
Panic / Car Finder:
Press and hold second button of remote control to cause siren to sound and indicators to flash.
Courtesy light switch activation:
System switches courtesy light on for 30 seconds or until ignition switch is turned on, when disarmed.
Electronic boot release. (Optional):
Press and hold the secondary remote control button, while system is disarmed, to activate boot release output. The indicators will flash four time each time the boot release signal is sent.
Our Senior Technician has been installing Dynatron Alarms for over 17 years now and still holds them in high regard!
