Amplified Terminal Cup

No need to take up valuable space now that the all-new ATC-250 Amplified Terminal Cup has arrived!

A highly versatile half bridge, high speed, class D amplifier made to serve either low end bass or full range applications by transforming the terminal cup position of your enclosure from passive to powered with next generation technology to easily produce well over 250 Watts from a tiny unit while managing internal temperatures.

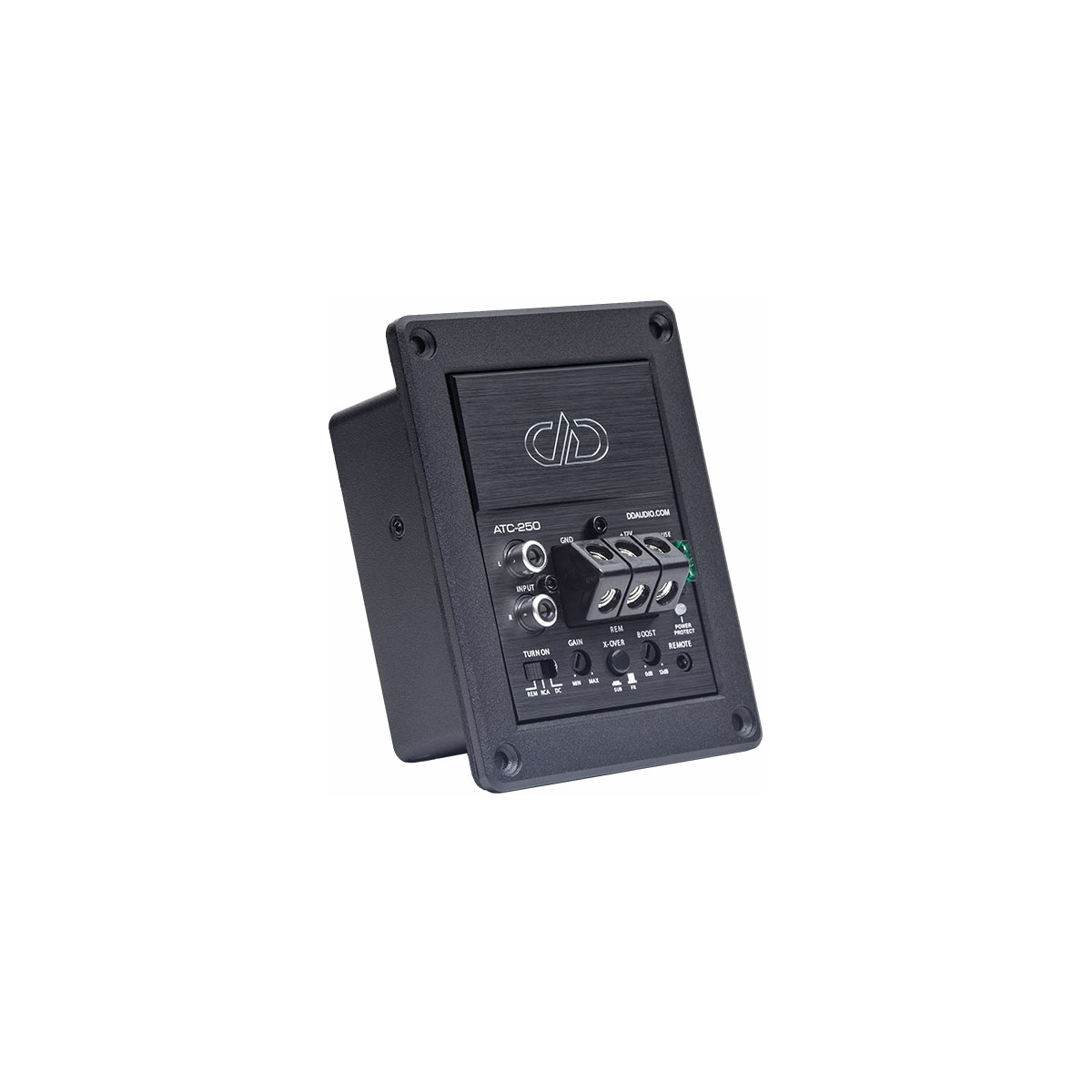

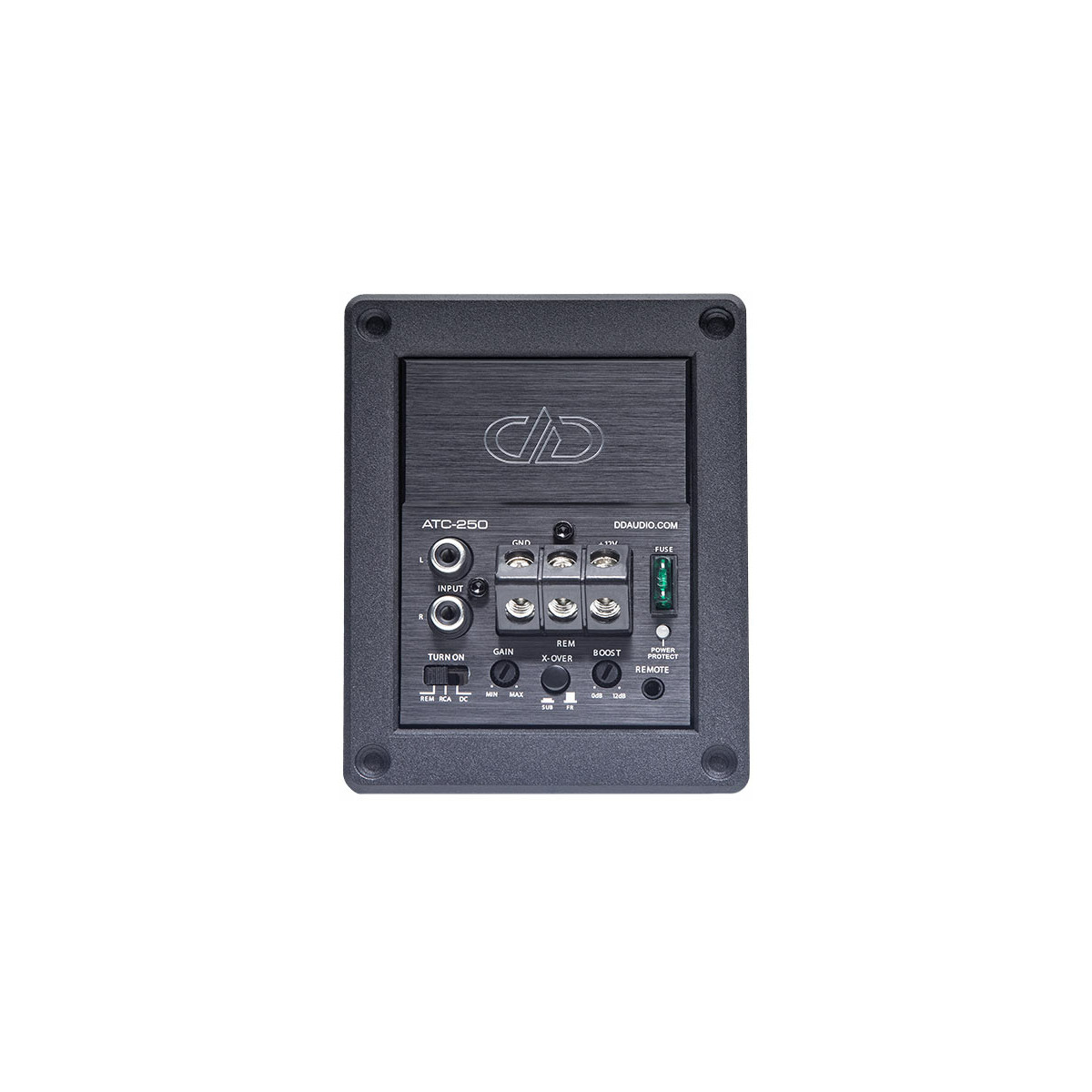

The ATC-250 from DD Audio is a 1-channel amplifier specifically designed as a replacement for the original terminal of the DD Audio LE series enclosures. With easy installation and a remote switch that supports both REM and RCA settings, the amplifier offers flexibility and user comfort. The ATC-250 features two crossovers: a SUB setting for frequencies from 30-80 Hz and a FR setting for frequencies from 80 Hz to 25 KHz.

Features include an operating voltage of 8-16V, a continuous power output of up to 250W at 1 Ohm, and a low-pass filter at 80 Hz. A remote control for the subwoofer is also included.

·         All Aluminium Chassis / Integrated Heat Sink
·         Compact High-Tech Design with DD Engraved Logo
·         Delivers Power Into 2 Ohm and 1 Ohm Loads
·         500 Watts Dynamic Power
·         Both Subwoofer and Full Range Modes
·         RCA Inputs
·         High Level Inputs

Specifications:

• Operating Voltage: 8 - 16 Test Voltage: 14.4
• Output Channel(s): 1
• Continuous Wattage @4ohm: 100
• Continuous Wattage @2ohm: 225
• Continuous Wattage @1ohm: 325
• Dynamic Wattage: 500
• Max Current Draw (Amps): 40
• RCA Input Voltage Sensitivity: 8 - 0.2
• RCA Input S/N: > 100
• Damping Factor: < 150
• THD: 1%
• Frequency Response (Hz): SUB: 30 - 80 / FR: 80 - 20k
• High Pass Filter: 80
• Sub-Sonic Filter: 30
• Low-Pass Filter: 80
• Remote Control: Remote Included in Box
• Power Wire Gauge: 4
• Speaker Wire Gauge: 12
• Dimensions (Inches): 2.93 x 3.75 x 2
• Dimensions (MM): 74.5 x 95.5 x 52.2
