HIGH-QUALITY CD PLAYER WITH A STYLISH DESIGN.

High-quality CD drive with precise and quiet loading mechanism and Toshiba CD controller unit

Particularly precise, low-noise digital/analogue conversion through high-quality D/A converter from Wolfson

Analogue filter and output stage with low-noise operational amplifiers from Texas Instruments

Elaborate power adapter with separate voltage stabiliser for the audio output stage

Sturdy solid-metal enclosure with front panel and controls made of solid aluminium

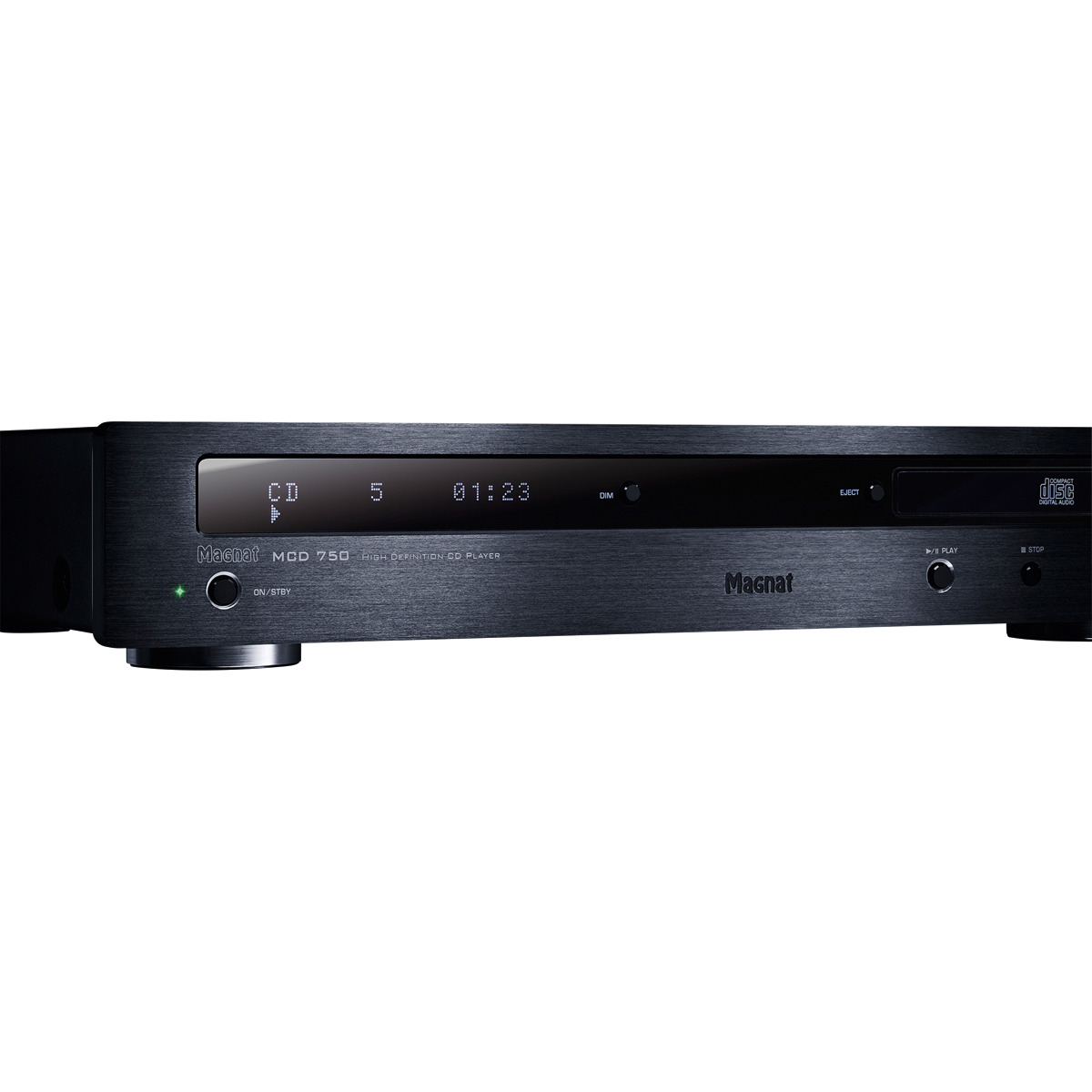

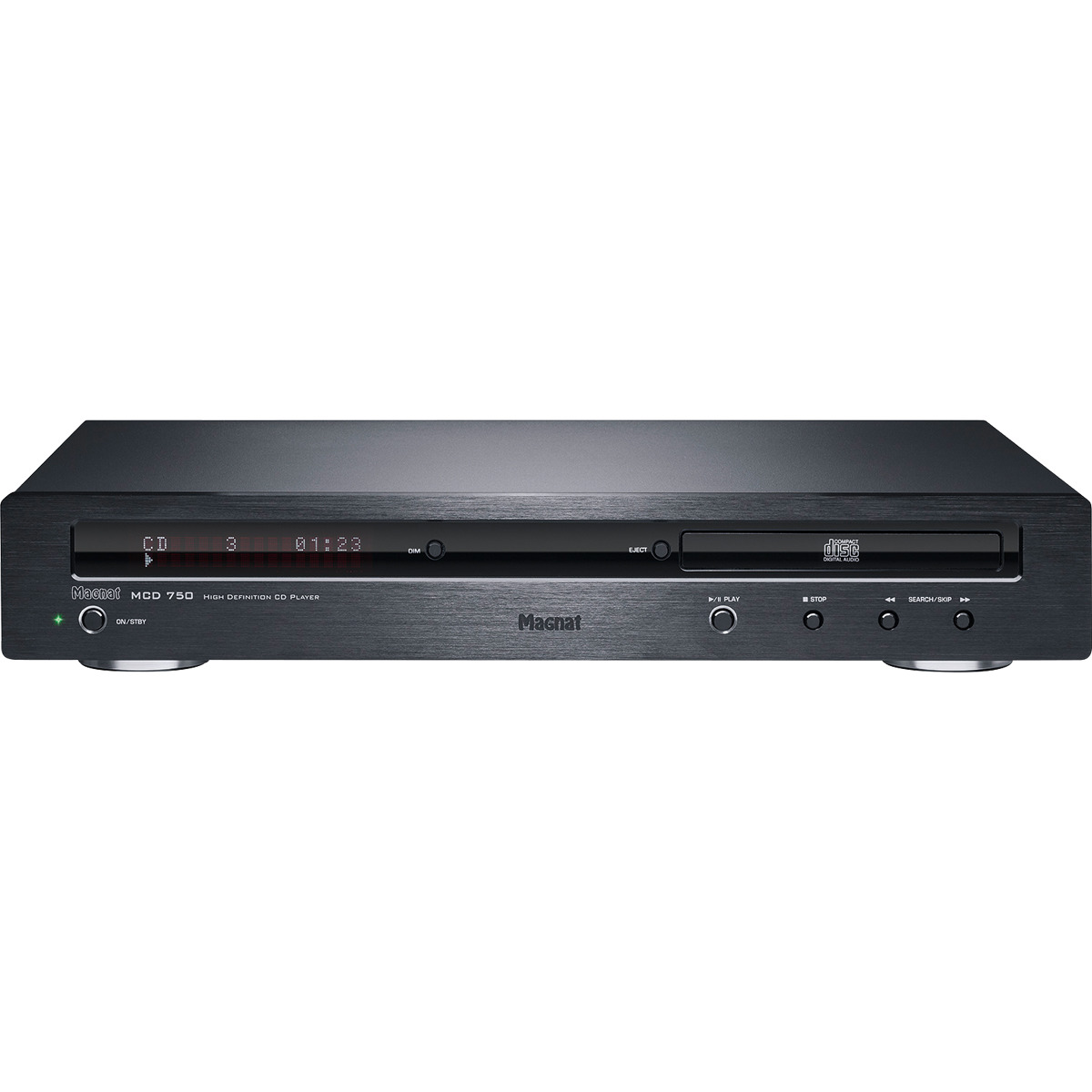

The Magnat MCD 750 is fully geared to provide as pure and high fidelity sound as possible. Thanks to its CD drive with a precise and very quiet loading mechanism as well as a controller unit from Toshiba, it performs this task with flying colors. A high-quality D/A converter from Wolfson ensures loss-free conversion of audio data into an analogue format. Alternatively, the MCD 750 also relays the signal directly in digital form. The extensive range of functions is completed by an easy-to-read, two-line clear text display with adjustable brightness, CD text and ID3 tag support as well as a high-quality system remote control. The high-quality CD player has a stylish, unobtrusive design and is enclosed in a sturdy full-metal housing with a solid brushed aluminium front panel.

PLAYABLE FORMATS - CD-Audio, CD-R, CD-RW, MP3, WMA

DIGITAL OUTPUT - optical and coaxial

FREQUENCY RESPONSE - 20 Hz – 20 kHz (+/- 0.5dB)

THD - Harmonic distortion THD+N (analog out): < 0,005 % Harmonic distortion THD+N (digital out): < 0.0012%

CHANNEL SEPARATION/ - > 110 dB (1kHz)

POWER CONSUMPTION - Max 30 W Standby < 0,5 W

MAINS VOLTAGE - 100 – 240 V~ , 50/60 Hz

OUTPUT SENSITIVITY - 2,0 V

S/N RATIO - > 108dB (20Hz – 20kHz, A)

DIMENSIONS (WXHXD) - 433 x 78 x 317 mm (322 mm incl. controls and connectors) Remote control: 45 x 175 x 20 mm

WEIGHT - 3.9 kg

COLOR - Black

CONNECTIONS - Analogue output with gold-plated RCA connectors. Two digital outputs (optical, coaxial)

CABINET - Sturdy full-metal enclosure with solid, brushed aluminium front. Stable feet with damping rubber insert
